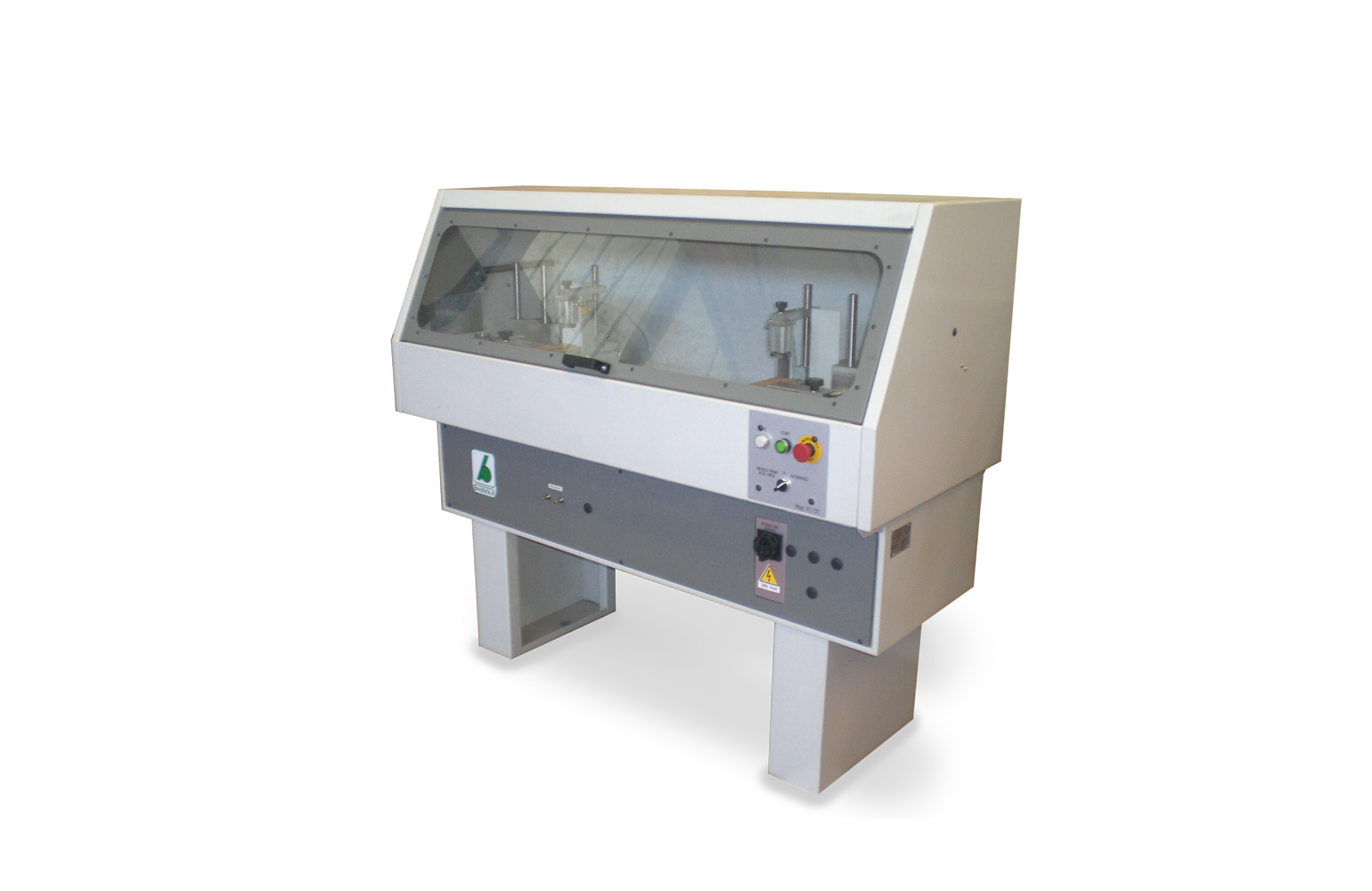

Heels cutter with 2 heads
Milling machine with fully automatic cycle.
It performs the gleaning of the tenons and the execution of her heels on the beam.
Possibility of executing the tenons on the slats of the blinds.
By means of Revolver 4-position allows adjustment the different lengths of the calcaneus to perform.
Left side tunnel for execution of heels on transoms longer than 800 mm.
- N. 2 indexable heads with scoring blade and glene 100x60 mm diameter each
- N. 2 engine heads 0.75 kW each
- N. 2 diameter suction ports 80 mm each.
- Minimum length of 215 mm work
- Maximum length of work 815 mm* (internal cutters)
- Maximum working thickness 75 mm
- Maximum working width 180 mm
* Available with the possibility of working useful length of 1500 mm
Tool max diameter
*Shown values may vary depending on the configuration of the machine.
