COLOMBO
AM 33
Cnc production centers for window frames
Code: 1943
restore Production year: 2005 error_outline Status: Good
domain Availability: Incoming check_circle EC legislation: Compliant
Electronic blade
Tenoning electronic guidance
Tenoning shafts number:
1
Profiling shafts number:
2
Description

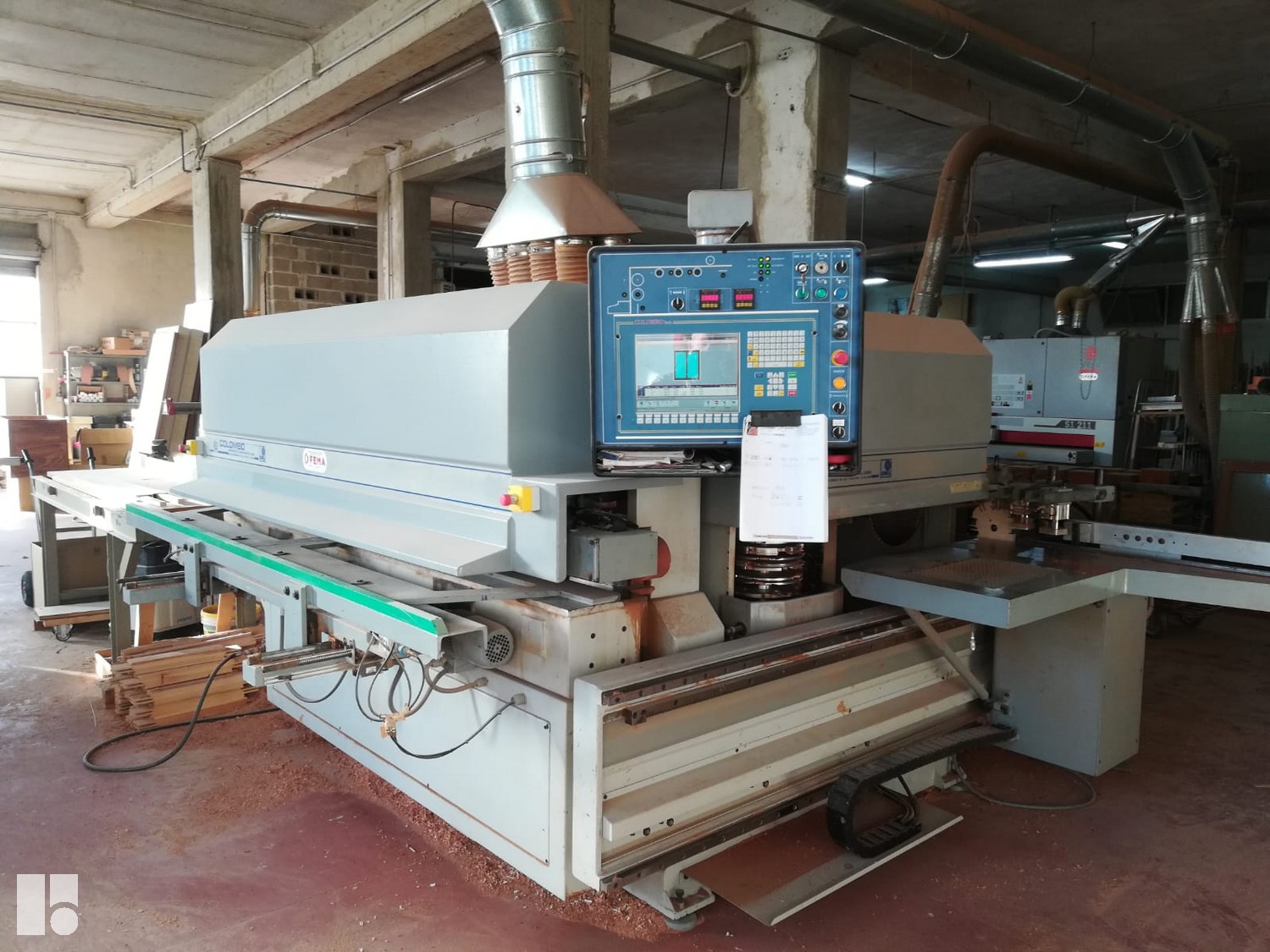

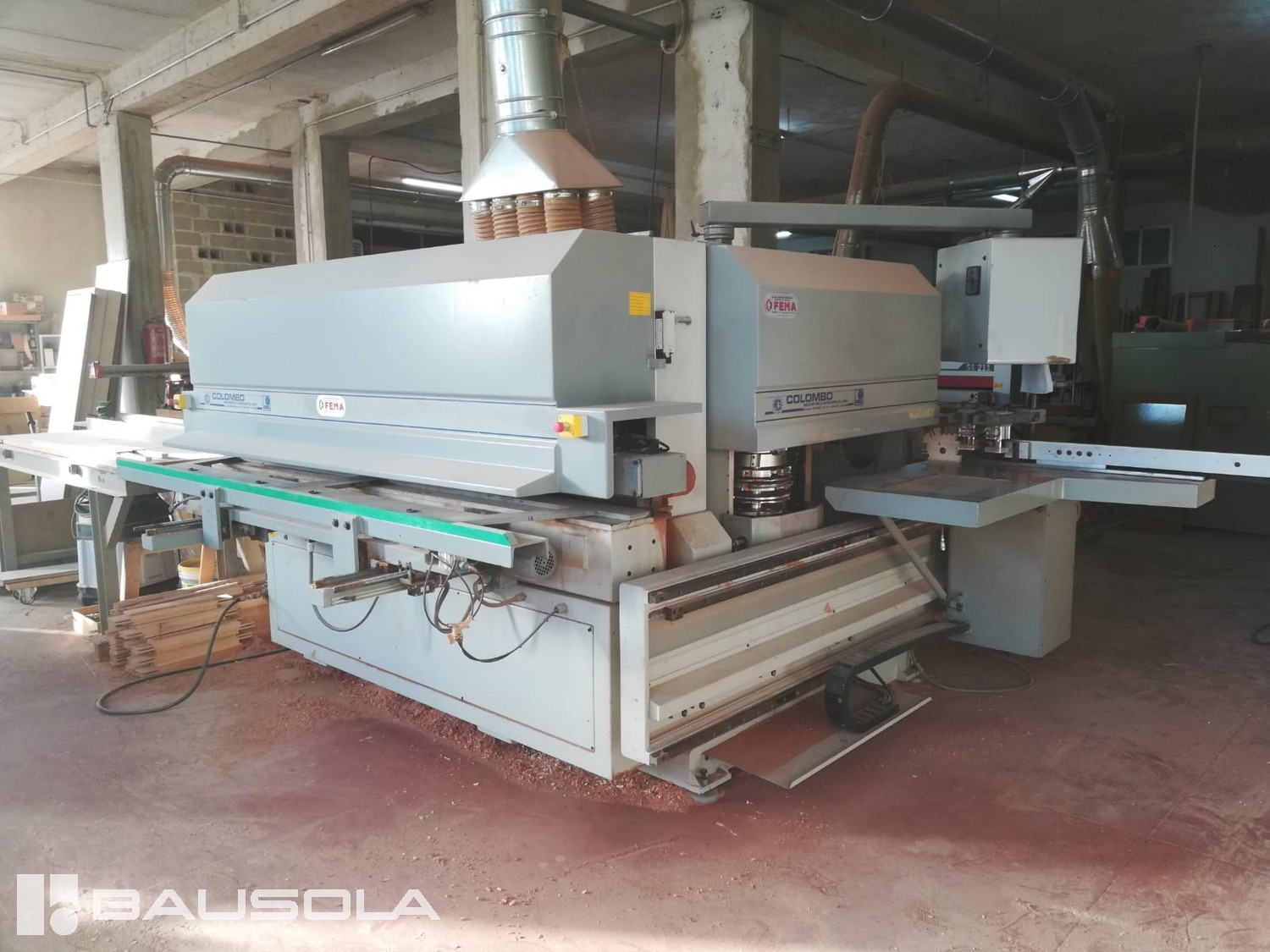

Cnc production centers for window frames
COLOMBO AM 33
Cut-off saw blade, completely retractable inside its guard, with CNC continuous axis horizontal positioning.

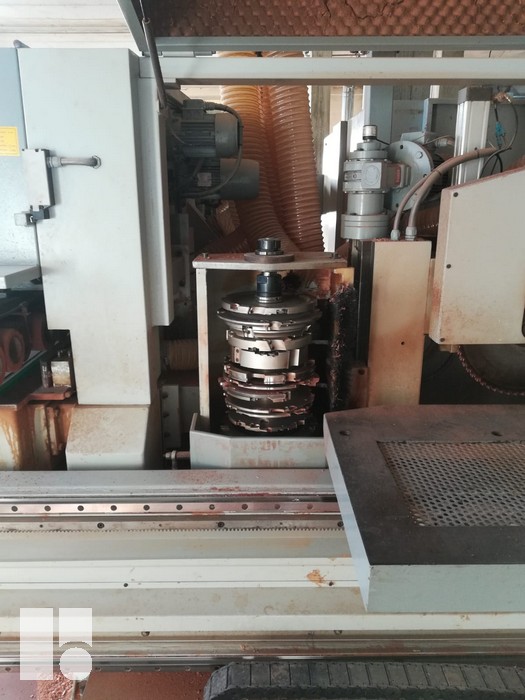

1 Counter-supported tenoning spindle, with CNC continuous axis vertical positioning.
Electronic workpiece fence for workpiece length reference.

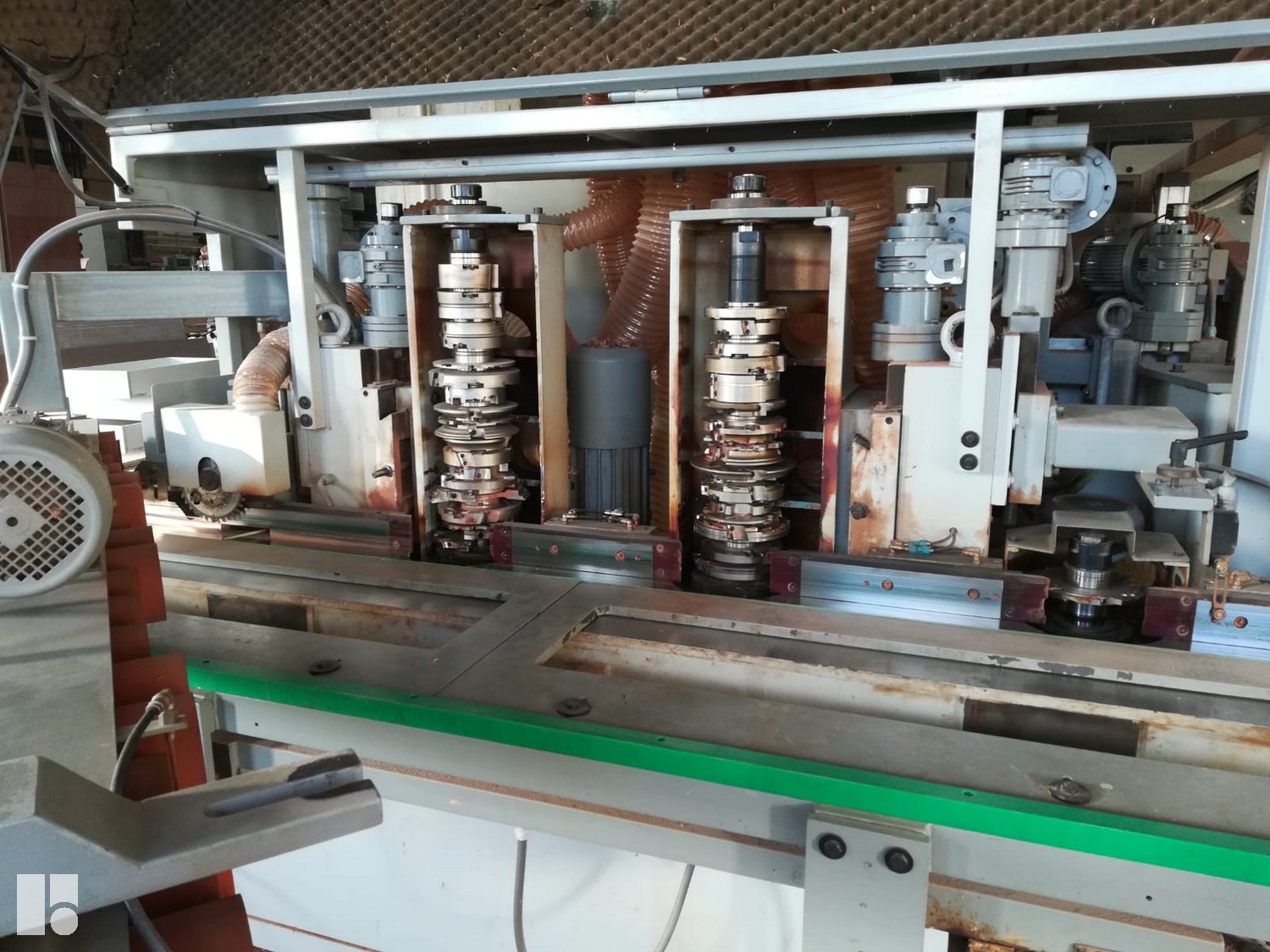

2 counter-supported profiling spindles with CNC continuous axis vertical positioning.
Glass bead recovery unit.
Spindle hardware grooving.
Feed system with rubberized rollers.
Left-hand external profiling fence with electronic positioning.
Technical details
Details
Electronic blade
check_circle
Tenoning electronic guidance
check_circle
Tenoning shafts number
1
Tenoning shaft length
600 mm
Tenoning shatìfts diameter
50 mm
Profiling shafts number
2
Profiling length shafts
600 mm
Profiling shafts diameter
50 mm
Electroning profiling guidance
check_circle
Glazing bar
check_circle
Dedicated hardware shaft
check_circle
Milling unit
check_circle
Unit type
VIVALDI VISA 2005

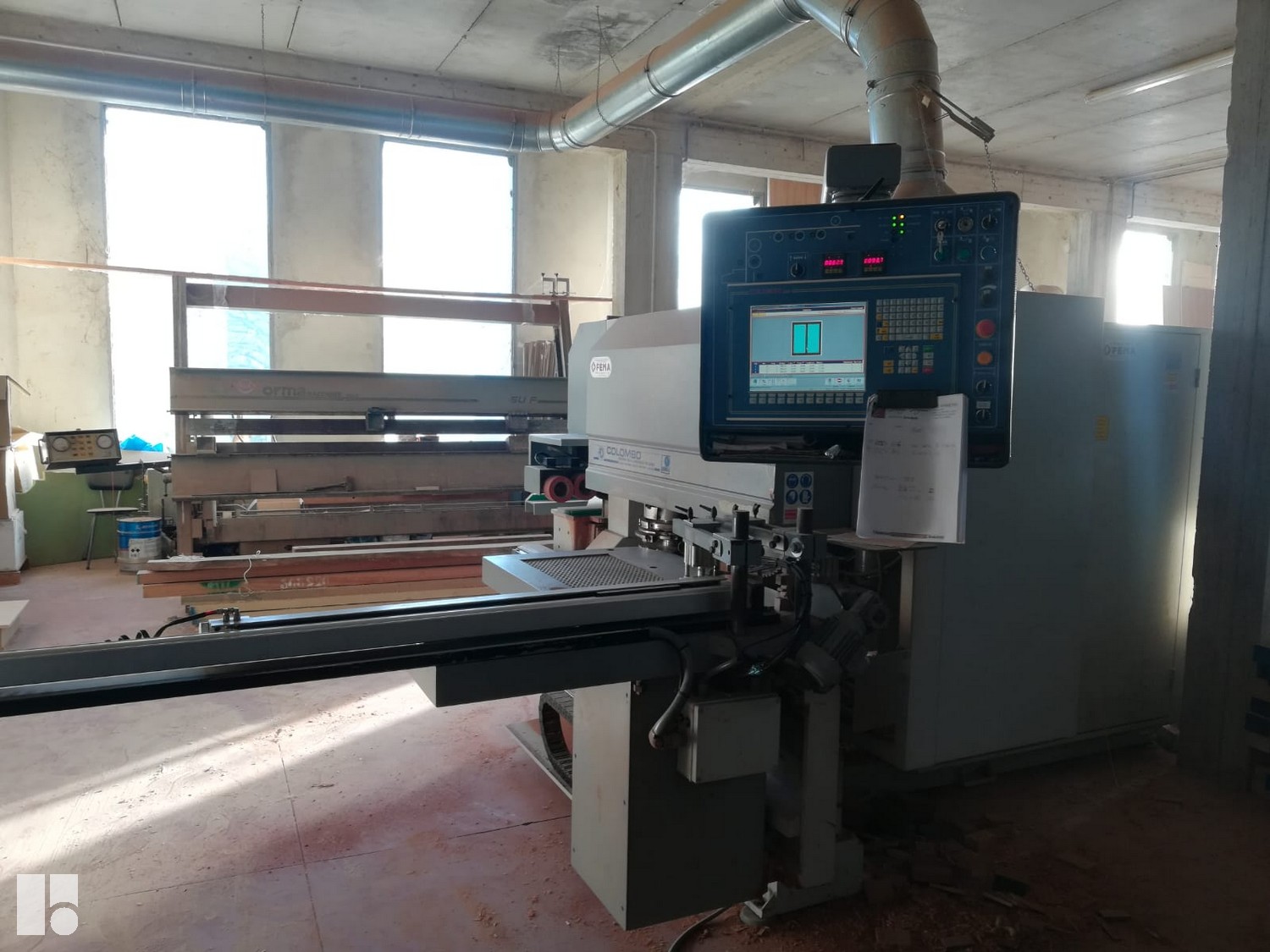

Software/C.N.
CNC type
Numerical Control
Generals
Sizes*
5500x3000x2000 mm
Weight*
4800 kg
Total kW*
40
*Shown values may vary depending on the configuration of the machine.
