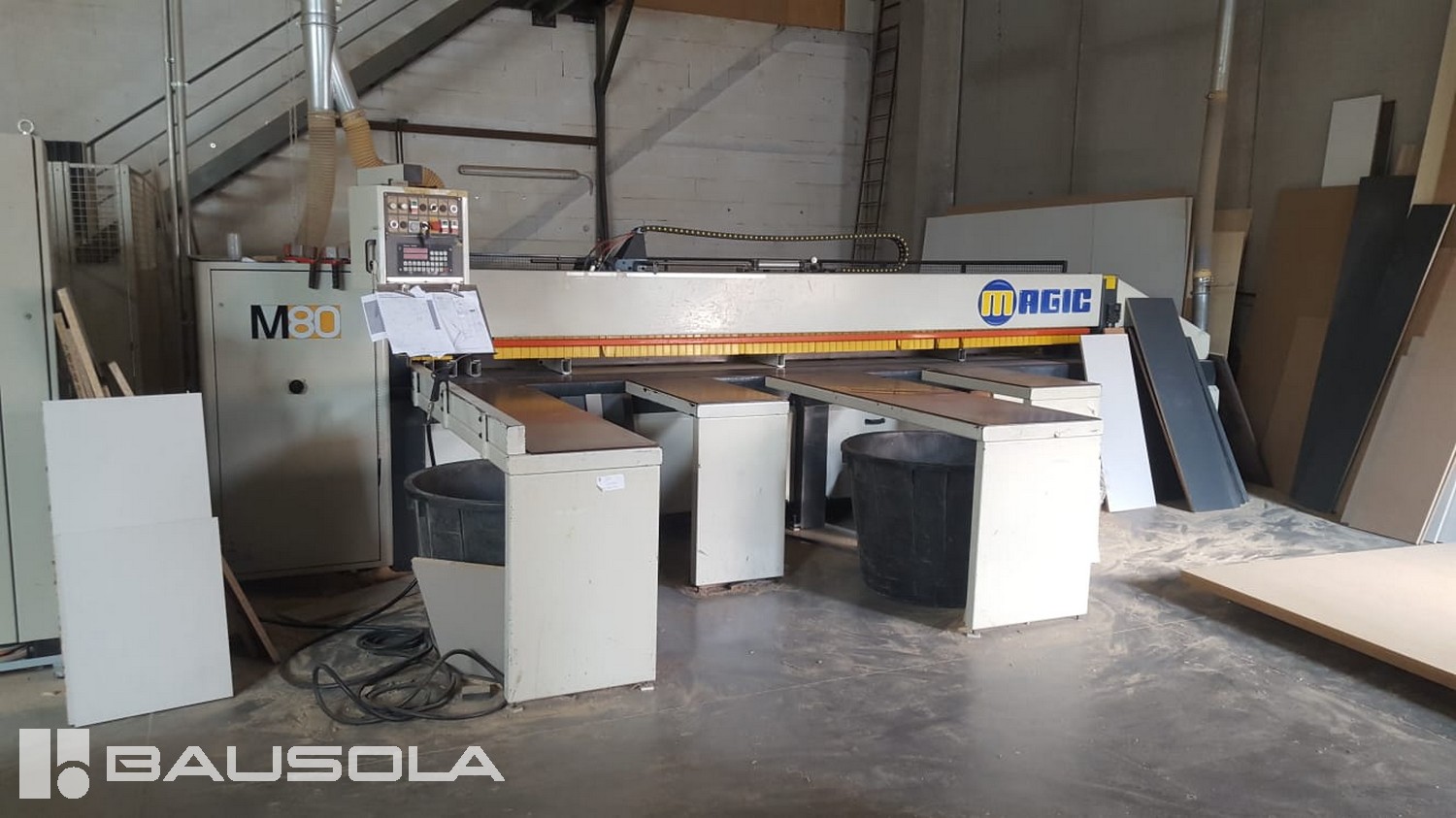

MAGIC
M80 CP1
Automatic beam saws
Code: 1738
restore Production year: 1998 error_outline Status: Good
domain Availability: Incoming check_circle EC legislation: Compliant
Effective length:
4500 mm
Effective width:
3200 mm
Effective thickness:
80 mm
Scoring (Optional)
Description
Automatic beam saws
MAGIC M80 CP1

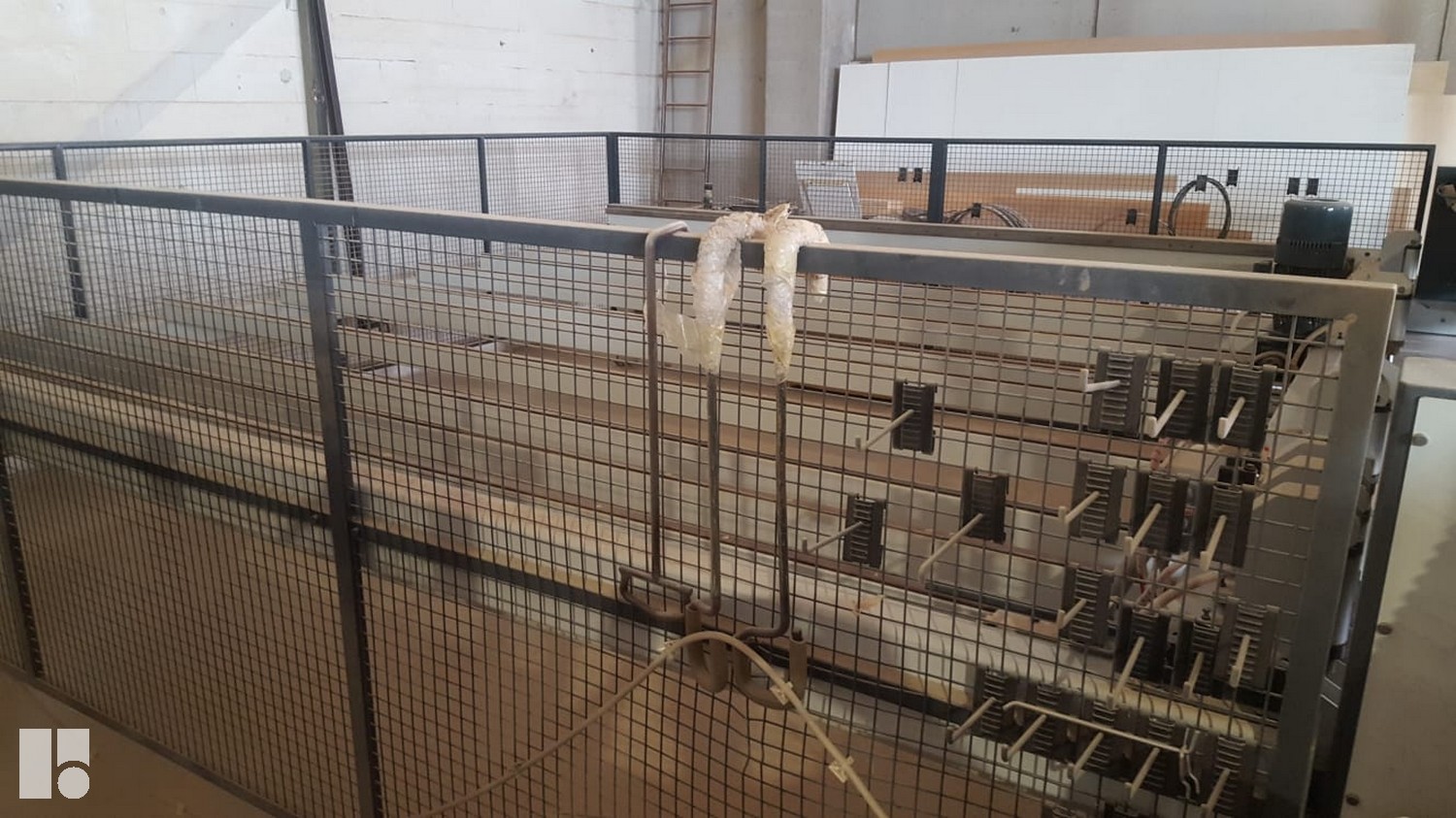

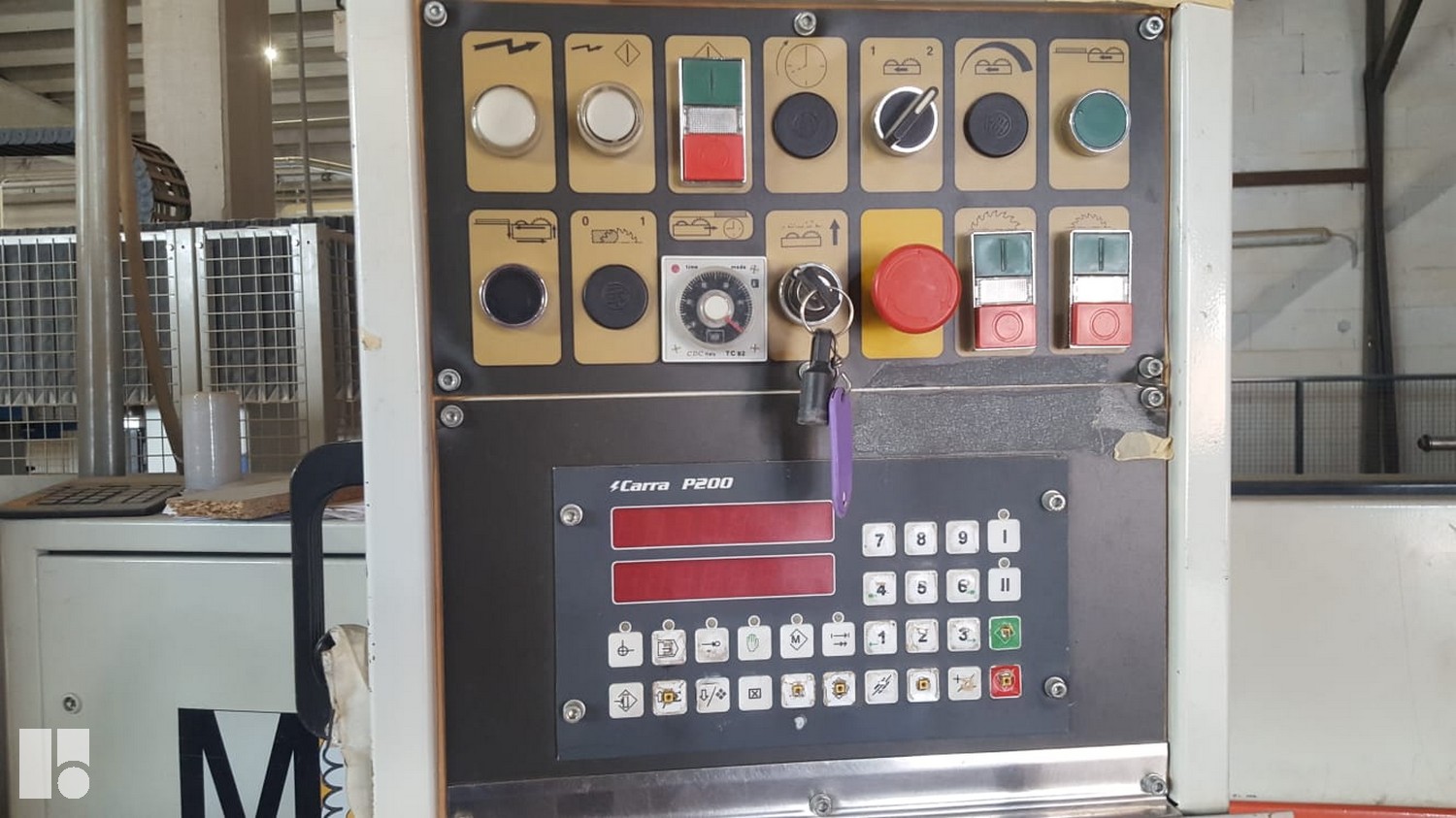

Mobile pusher on structure placed above the worktable electronically controlled by programmer with 250 storable measurements.
Cross cut aligner, full control by programmer.

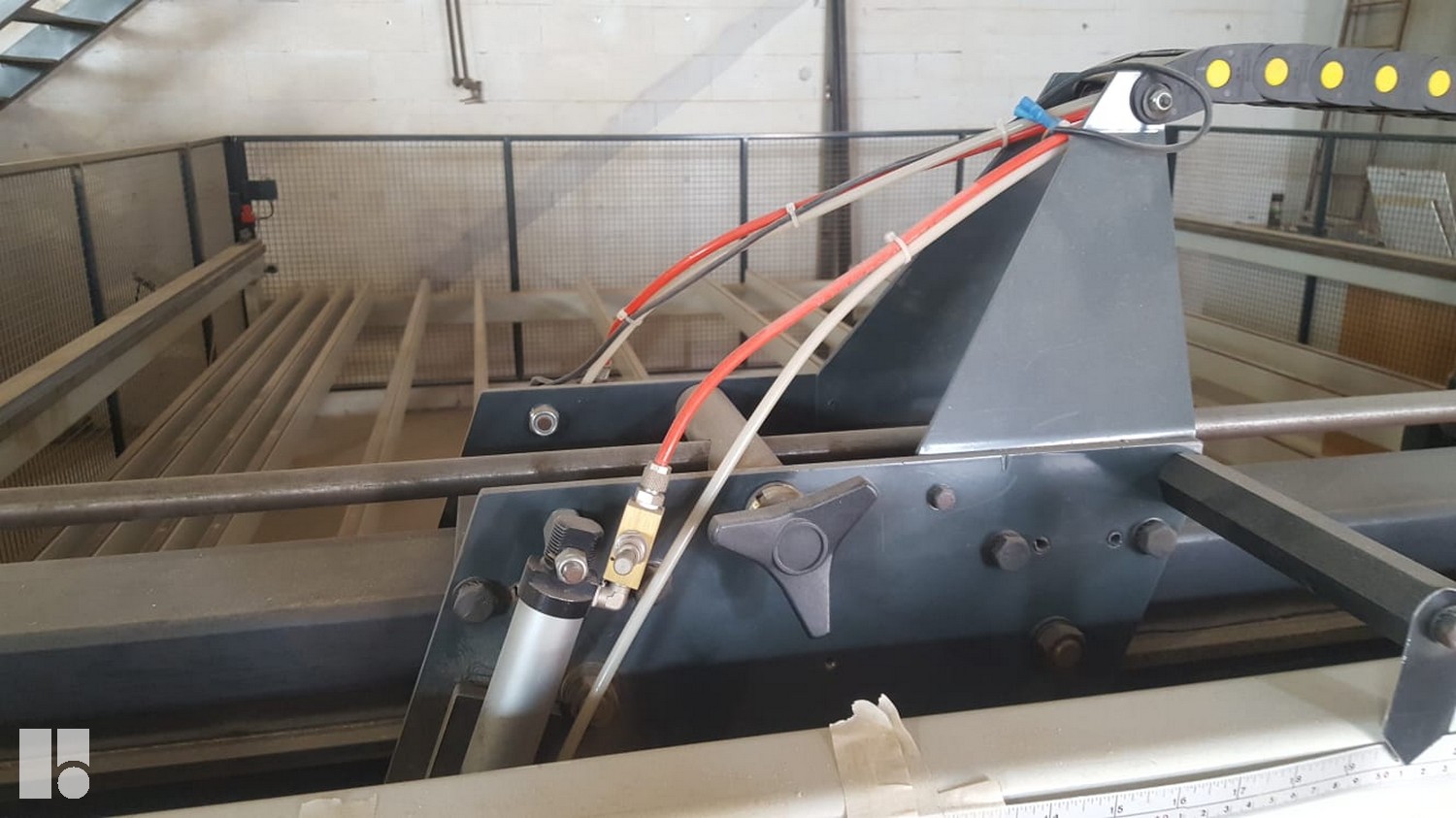

Pneumatics grippers, solid structure with leverage for high clamping force. Rubber lining in order to avoid surface damage to the rolled panels.
Technical details
Effective working
Effective length
4500 mm
Effective width
3200 mm
Effective thickness
80 mm
Details
Scoring (Optional)
check_circle
Front planes number
4
Grippers number
6
Generals
Sizes*
6610x6400x1960 mm
Weight*
3000 kg
Total kW*
7,5
*Shown values may vary depending on the configuration of the machine.
