OMGA
TR 2C N
Semiautomatics mitre saws with two blades
Code: 1473
restore Production year: 2008 error_outline Status: Good
domain Availability: In stock check_circle EC legislation: Compliant
Effective length:
2800 mm
Blade diameter:
350 mm
Description

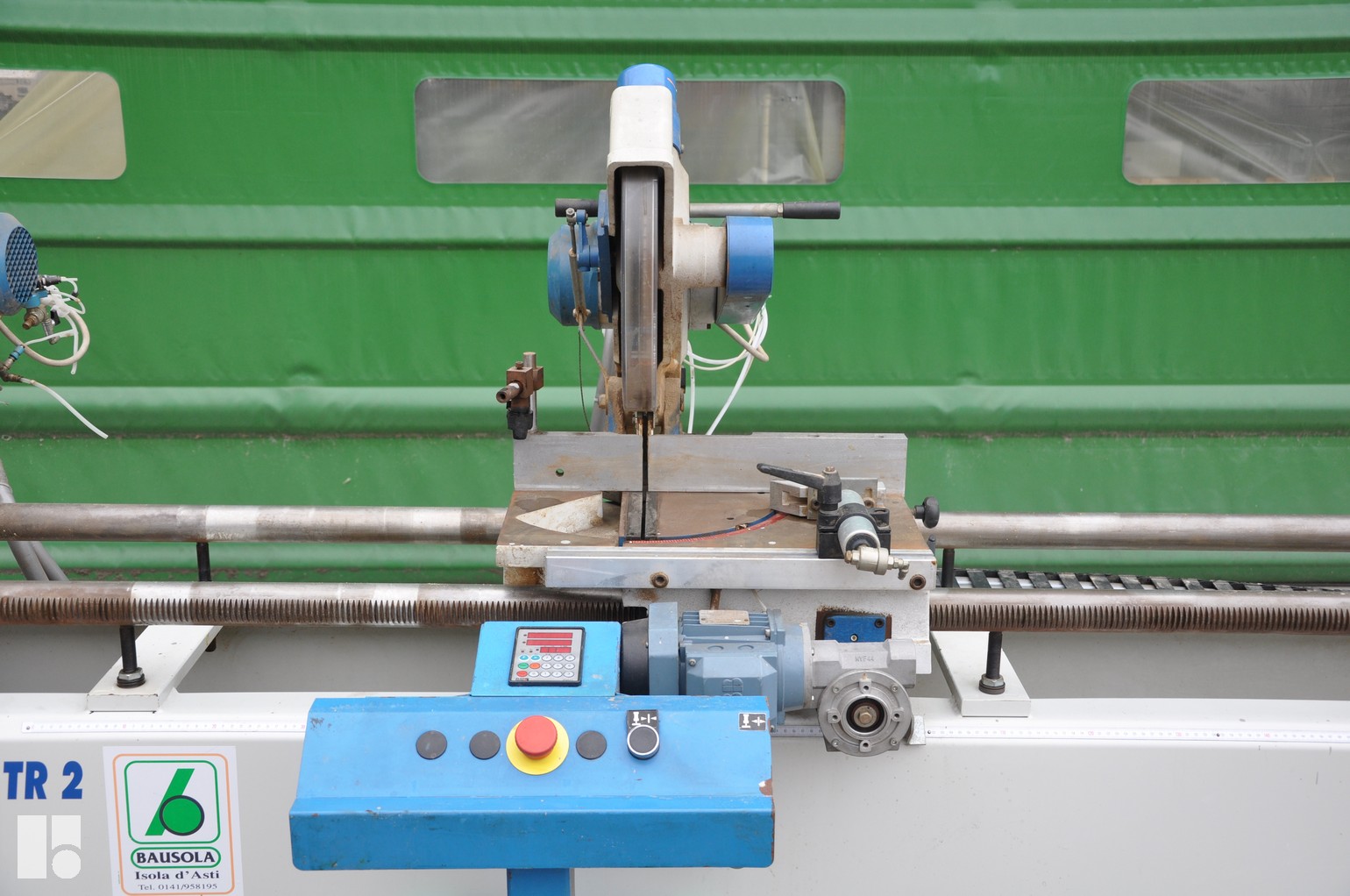

Semiautomatics mitre saws with two blades
OMGA TR 2C N
The machine is with two vertical clamps that the block the piece during cutting phase.
The clamps only unlock when the heads are returned in rest position.
The angles are slected by selfcentering lockings on the position 90°, 45°in the right and 45° to the left.
The intermediate positions are blocked by means of a manual lever.
Technical details
Effective working
Effective height
170 mm
Effective width
100 mm
Effective length
2800 mm
Details
Cut
Semiautomatics
Blade diameter
350 mm
Superior cut
check_circle
Generals
Sizes*
3675x1500x1300 mm
Weight*
530 kg
Total kW*
4,4
*Shown values may vary depending on the configuration of the machine.
