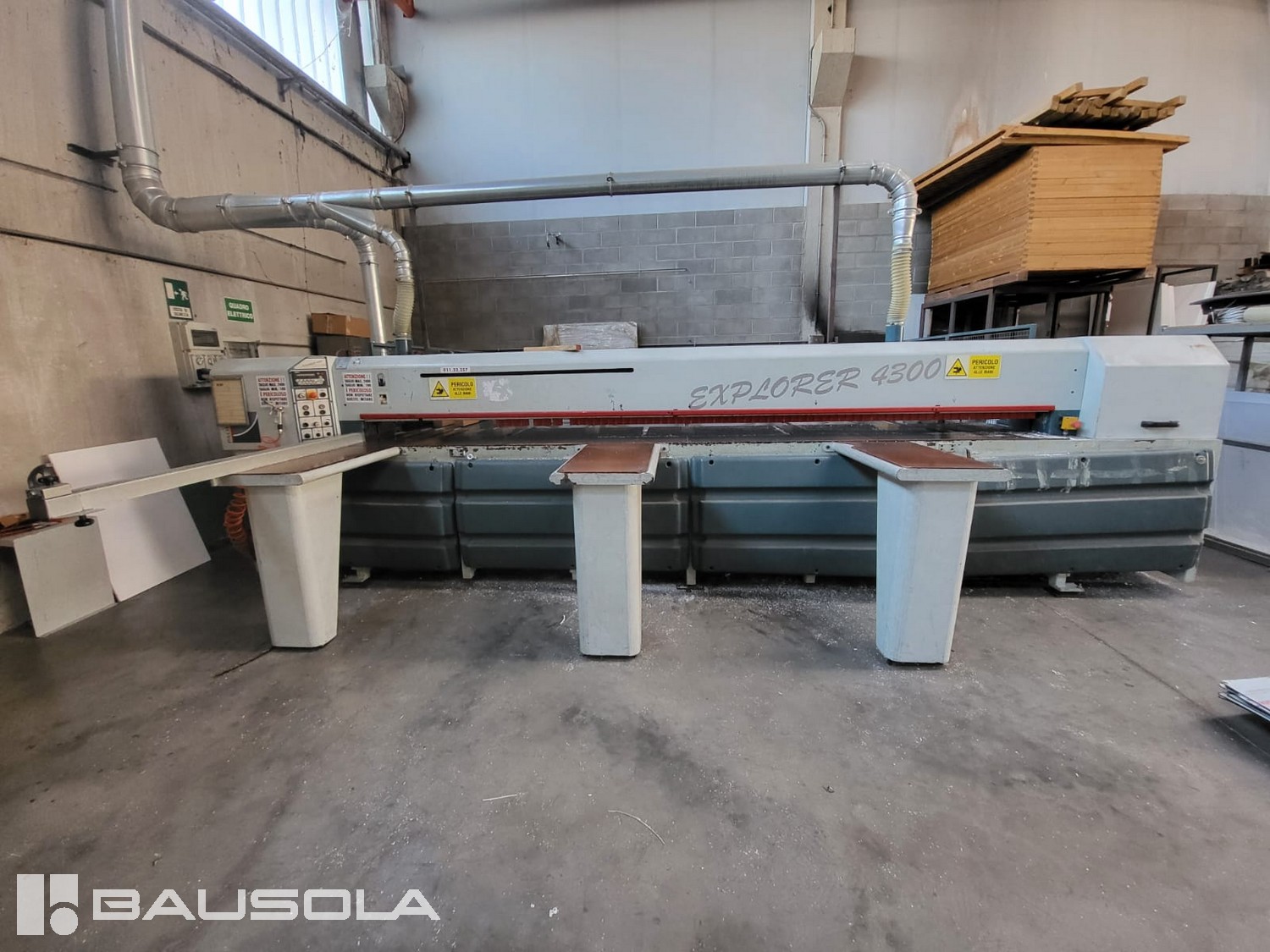

PAOLONI
EXPL 4300
Automatic Beam Saws
Code: 1835
restore Production year: 1999 error_outline Status: Discreet
domain Availability: Incoming check_circle EC legislation: Compliant
Effective length:
4300 mm
Effective width:
2400 mm
Effective thickness:
70 mm
Scoring (Optional)
Description
Automatic Beam Saws
PAOLONI EXPL 4300

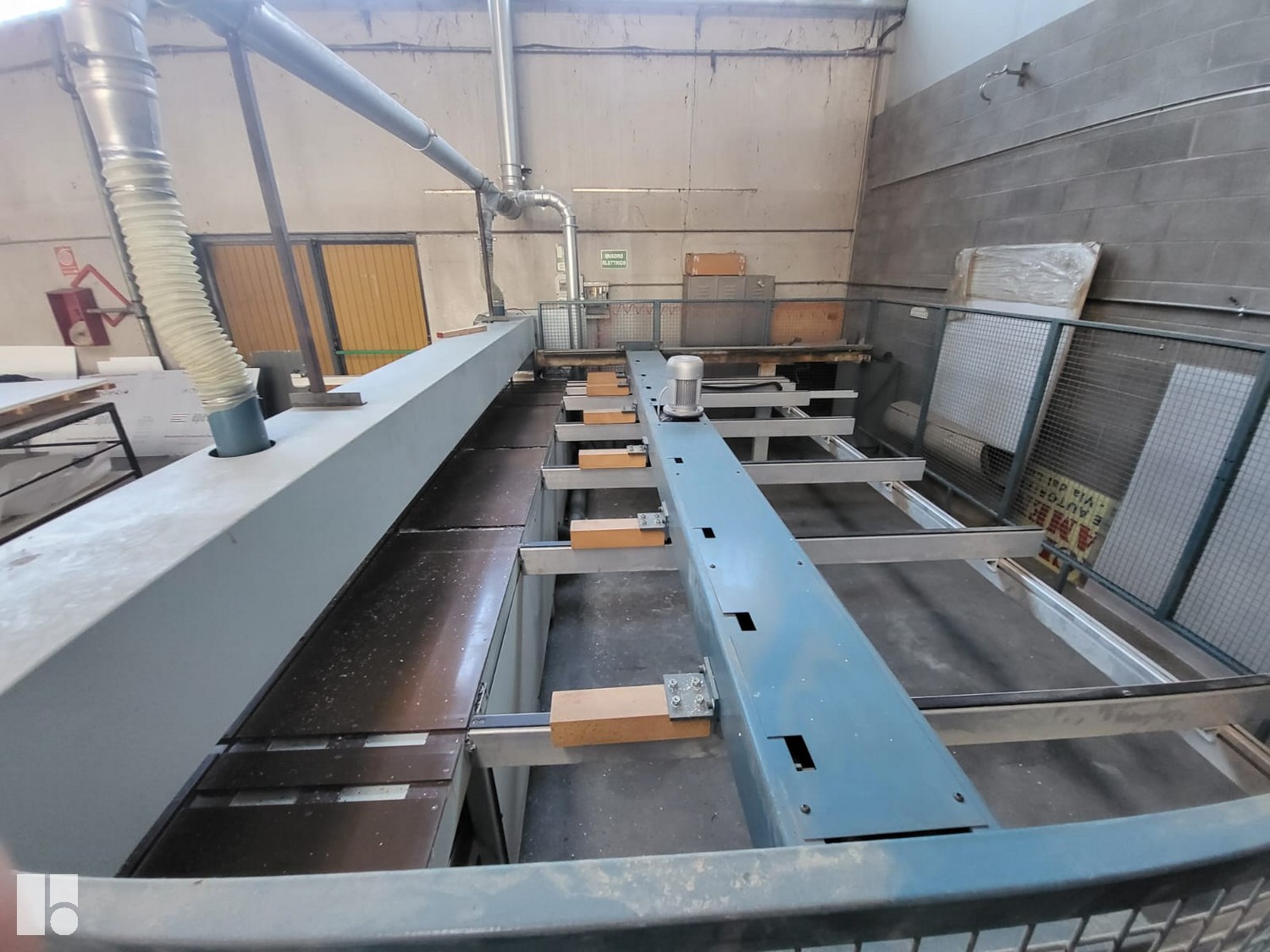

Holder carriage with balanced masses.
The pusher, controlled by inverter, slides on cylindrical guides with moulded wheels and self-lining tables.
The control panel, within easy reach, is simple and functional.
All controls are ergonomic position.
The electronic programmer has a store capacity of 99 storable cycles.
The machine table and the front support little tables, are covered with a plate of anti - scratch material.
Technical details
Effective working
Effective length
4300 mm
Effective width
2400 mm
Effective thickness
70 mm
Details
Scoring (Optional)
check_circle
Front planes number
3
Grippers number
7 pushers
Generals
Sizes*
6000x5500x1500 mm
Weight*
3000 kg
Total kW*
9
*Shown values may vary depending on the configuration of the machine.
