SAC SUERI
F4
Cnc production centers for window frames
Code: 1255
restore Production year: 2001 error_outline Status: Good
domain Availability: In stock check_circle EC legislation: Compliant
Electronic blade
Tenoning electronic guidance
Tenoning shafts number:
1
Profiling shafts number:
2
Description

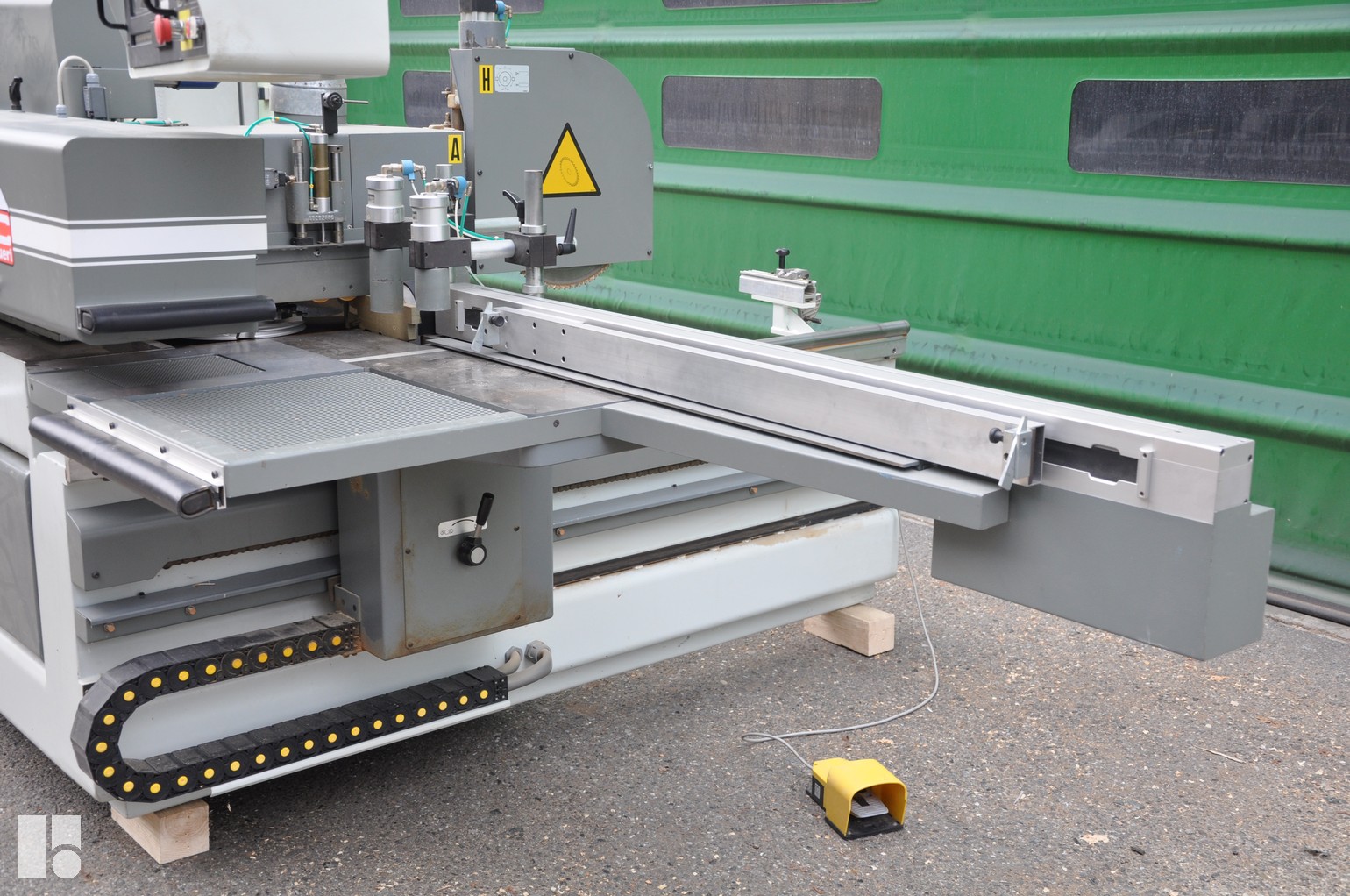

Cnc production centers for window frames
SAC SUERI F4
Row with electronic positioning piece length stop by CN
Blade unit for facing with horizontal NC positioning for defining the tenoning depth
1 precision tenoning spindle
Left electronic positioning profiling guide from CN
2 precision spindle for profiling
1 Glazing bead recovery unit
1 Dedicated hardware shaft
TENONING CARRIAGE:
Transmission by chain motor with speed variator
Variable working speed 3-10 m / min
1,1 kW motor power
Automatic splint disc
CUTTING-OFF UNIT:
Blade diameter 400 mm hole 30 mm
3 kW motor power
Blade speed 3000 rpm
Horizontal movement of the blade from CN 130 mm
Maximum facing height 90 mm
1ST TENONING SPINDLE:
Spindle shaft diameter 50 mm
Shaft length 320 mm
Vertical shaft stroke 295 mm
Shaft rotation speed 3500 rpm
Spindle motor 7.5 kW
Maximum tool diameter applicable 300-350 mm
MIDDLE FENCE:
1ST PROFILING SPINDLE:
Spindle shaft diameter 50 mm
Shaft length 320 mm
Vertical shaft stroke 295 mm
Spindle motor 7.5 kW
Start star-triangle
Shaft rotation speed 6000 rpm
Basic tool diameter 110-140 mm
Maximum tool diameter applicable 240 mm
Profiling spindle with direct and reverse rotation
2ND PROFILING SPINDLE:
Spindle shaft diameter 50 mm
Shaft length 320 mm
Vertical shaft stroke 295 mm
Spindle motor 7.5 kW
Start star-triangle
Shaft rotation speed 6000 rpm
Basic tool diameter 110-140 mm
Maximum tool diameter applicable 240 mm
Right spindle tree rotationX
GLASS BEAD RECOVERY UNIT:
Blade diameter 200 mm
Horizontal blade adjustment 60 mm
2,2 kW motor power
Blade rotation speed 6000 rpm
FEED DEVICE:
Transmission by cardanic joints
Air-adjustable work pressure
Manual feed advance speed 4-20 m/min
Motor power advance 0.75 kW
Rubber wheels Ø 145 mm
Power motor adjusting vertical progress bar 0.37 kW
Motorized vertical positioning and position control via electronic display on control panel
Technical details
Details
Electronic blade
check_circle
Tenoning electronic guidance
check_circle
Tenoning shafts number
1
Tenoning shaft length
320 mm
Tenoning shatìfts diameter
50 mm
Profiling shafts number
2
Profiling length shafts
320 mm
Profiling shafts diameter
50 mm
Electroning profiling guidance
check_circle
Glazing bar
check_circle
Dedicated hardware shaft
check_circle
Software/C.N.
CNC type
Numerical Control
Generals
Sizes*
4600x2700x2150 mm
Weight*
3800 kg
Total kW*
36
*Shown values may vary depending on the configuration of the machine.
