SCM
WINDOR 20

Description

Cnc production centers for window frames

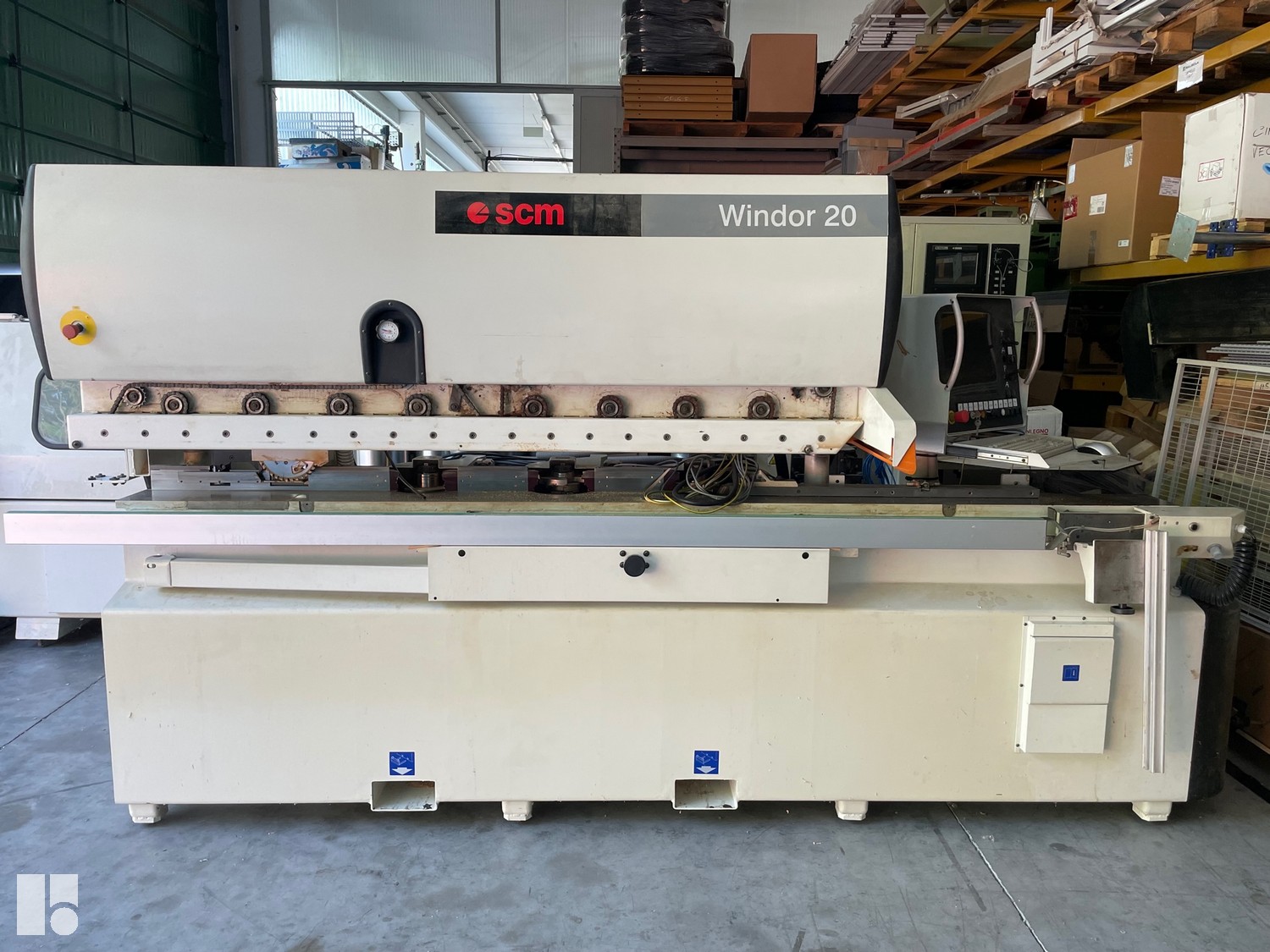

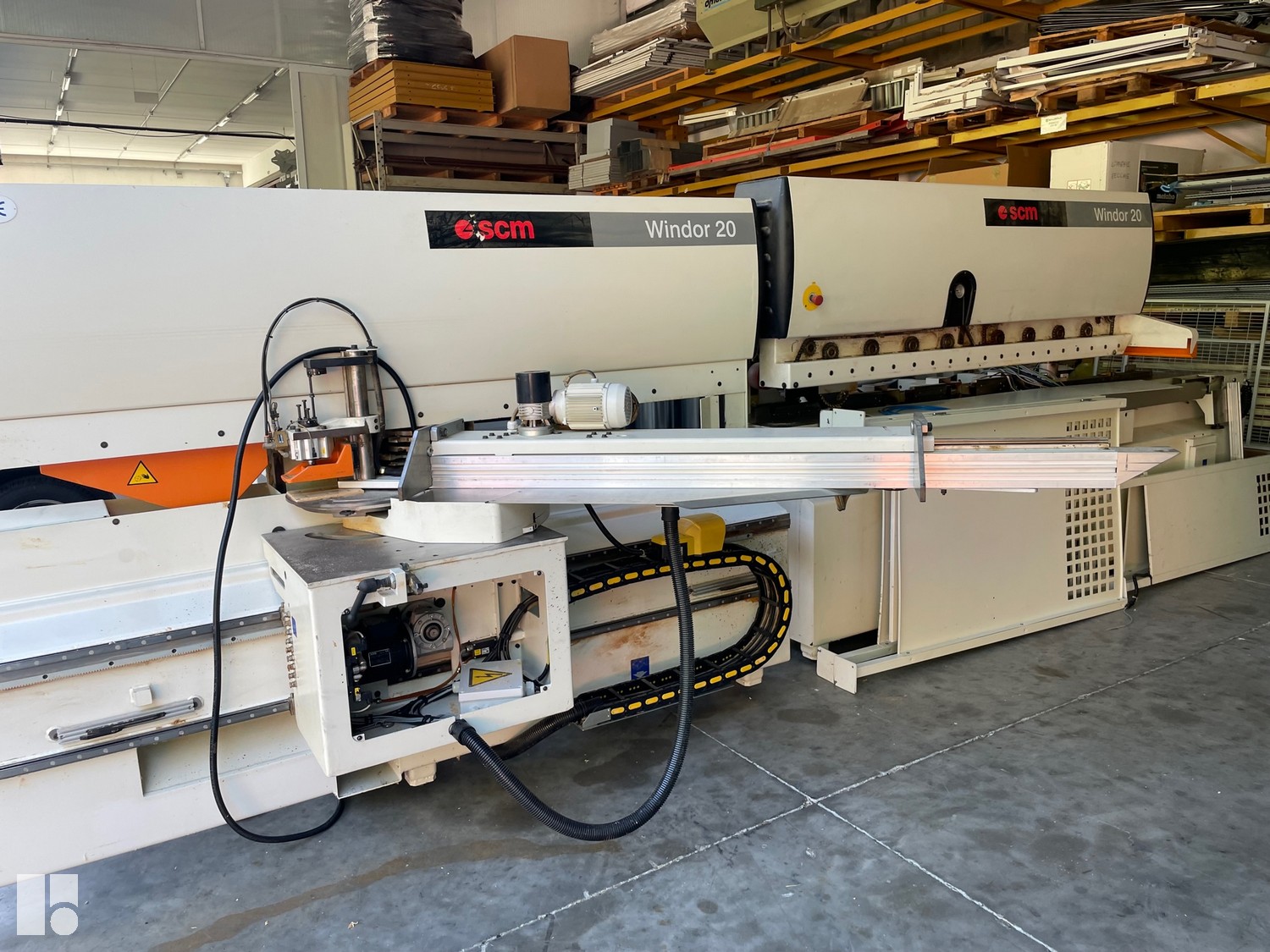

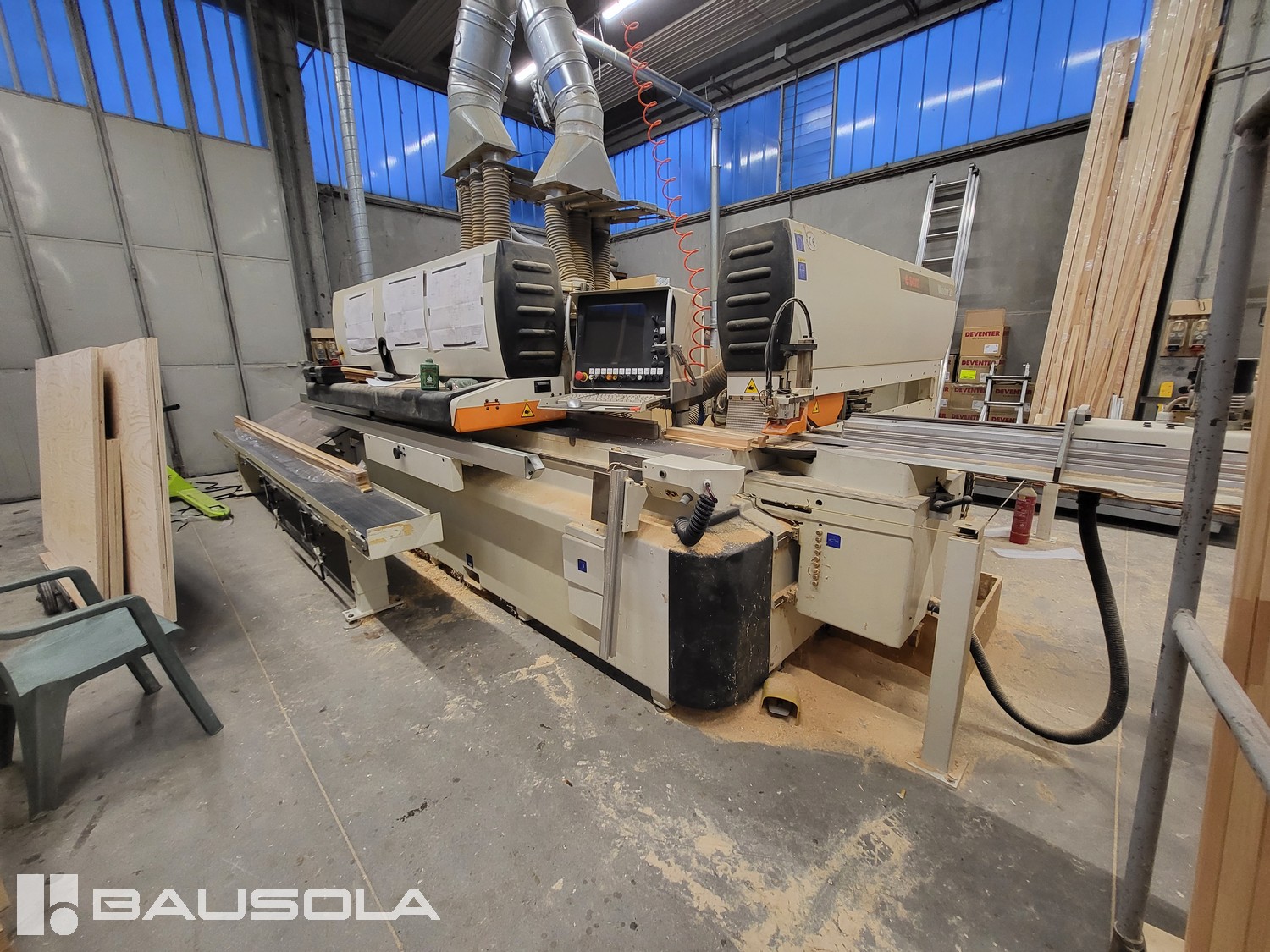

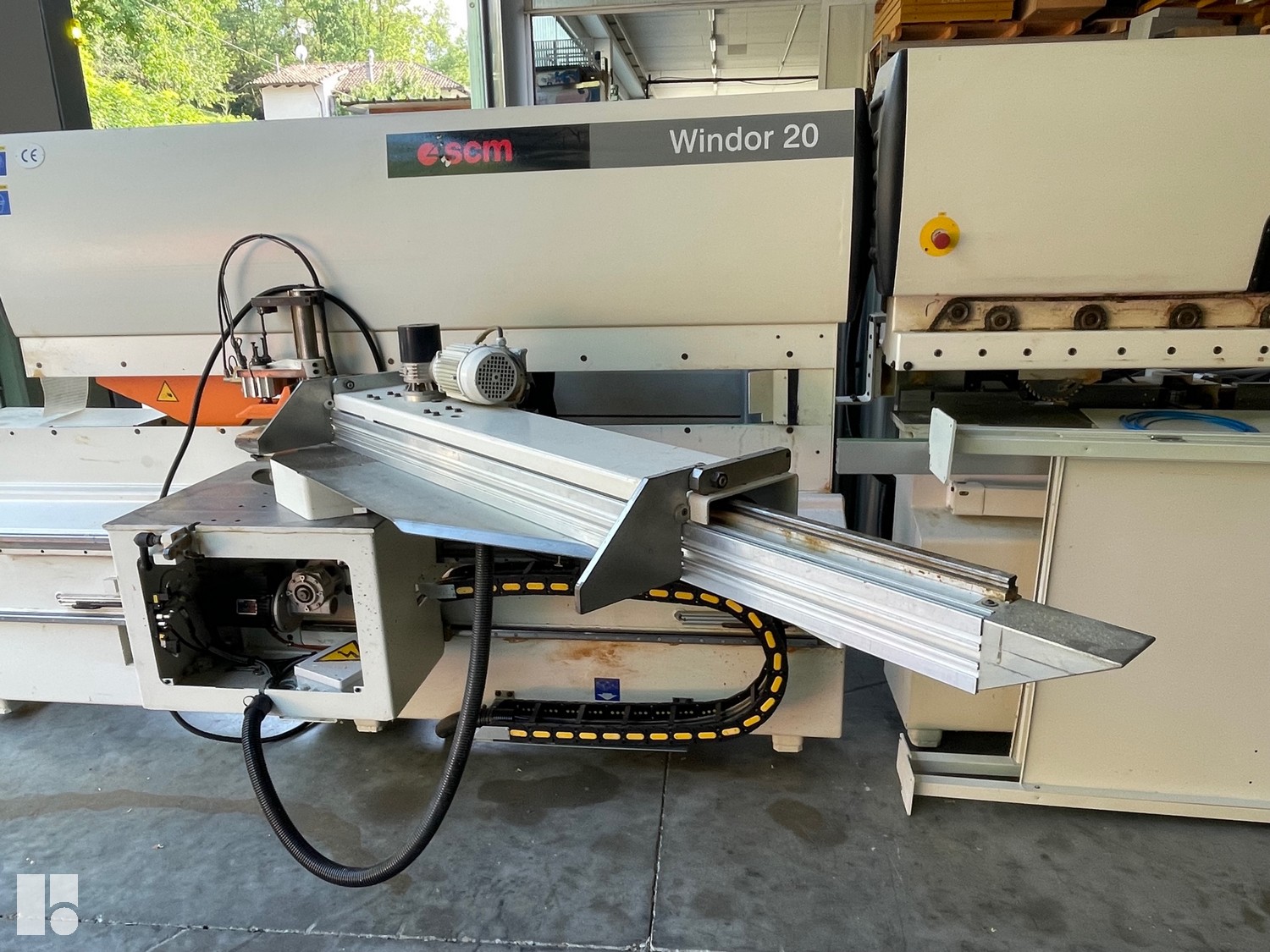

SCM WINDOR 20

Row with electronic positioning piece length stop by CN
Blade unit for facing with horizontal NC positioning for defining the tenoning depth
1 precision tenoning spindle
Left electronic positioning profiling guide from CN
3 precision spindle for profiling
1 Glazing bead recovery    unit

CUTTING-OFF UNIT:
Motor power 4 kW
Max tool diameter 400 mm hole 80 mm
Shaft diameter 40 mm complete with flange diameter 80 mm
Rotation speed 3000 rpm

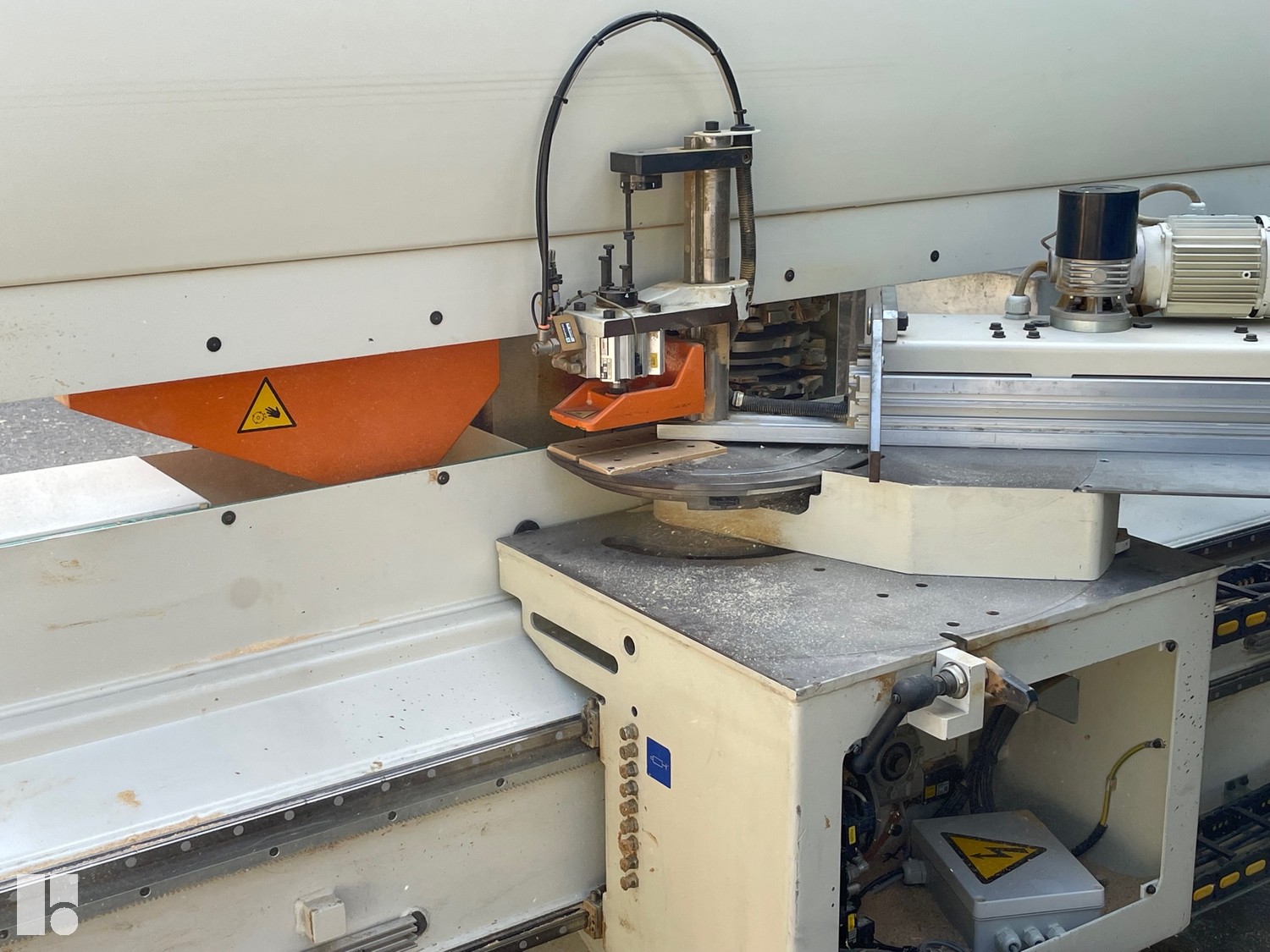

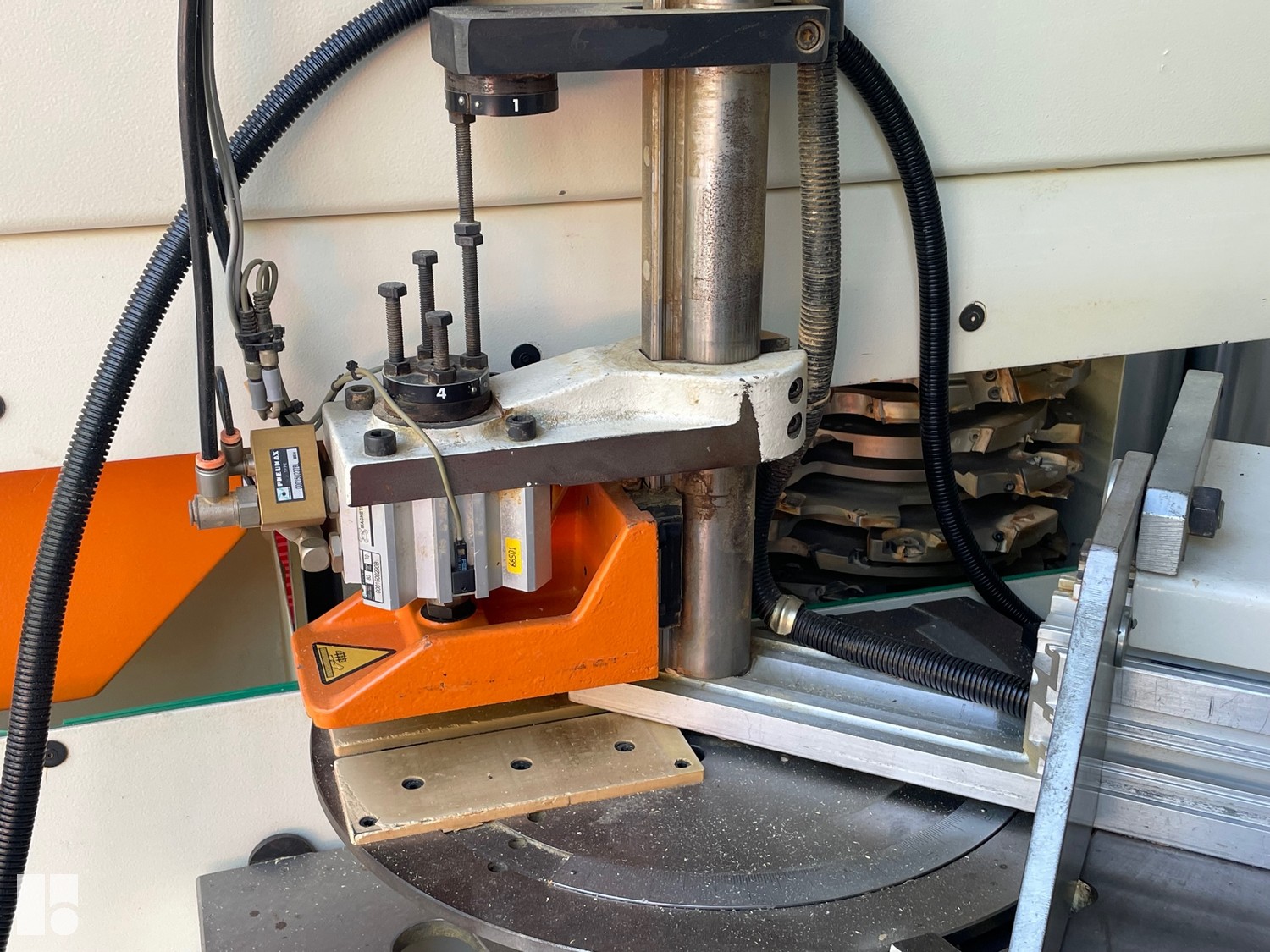

1ST TENONING SPINDLE:
Spindle shaft diameter 50 mm
Shaft length 620 mm
Shaft rotation speed 3500 rpm
Spindle motor 7.5 kW
Maximum tool diameter applicable 320-370 mm

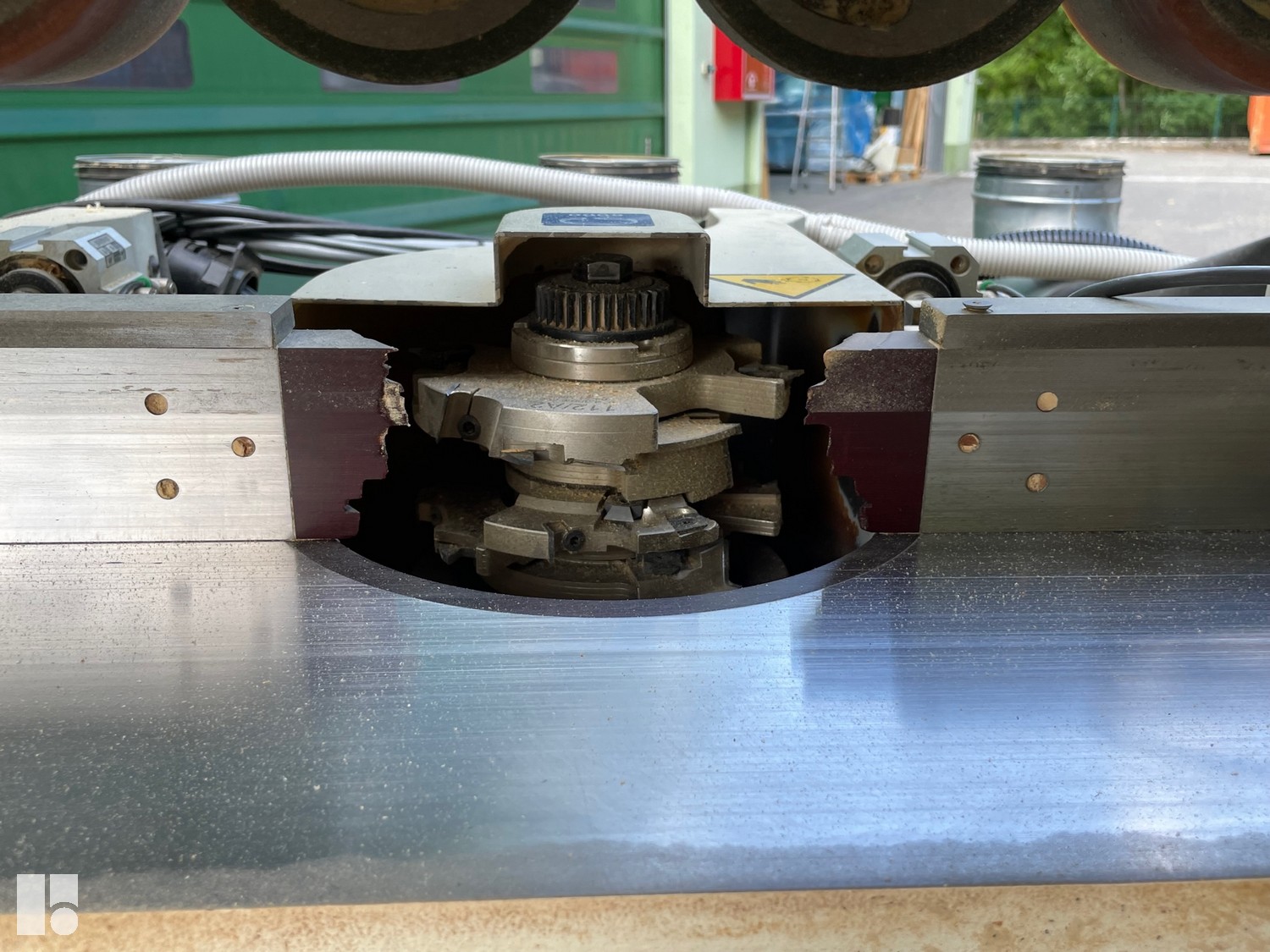

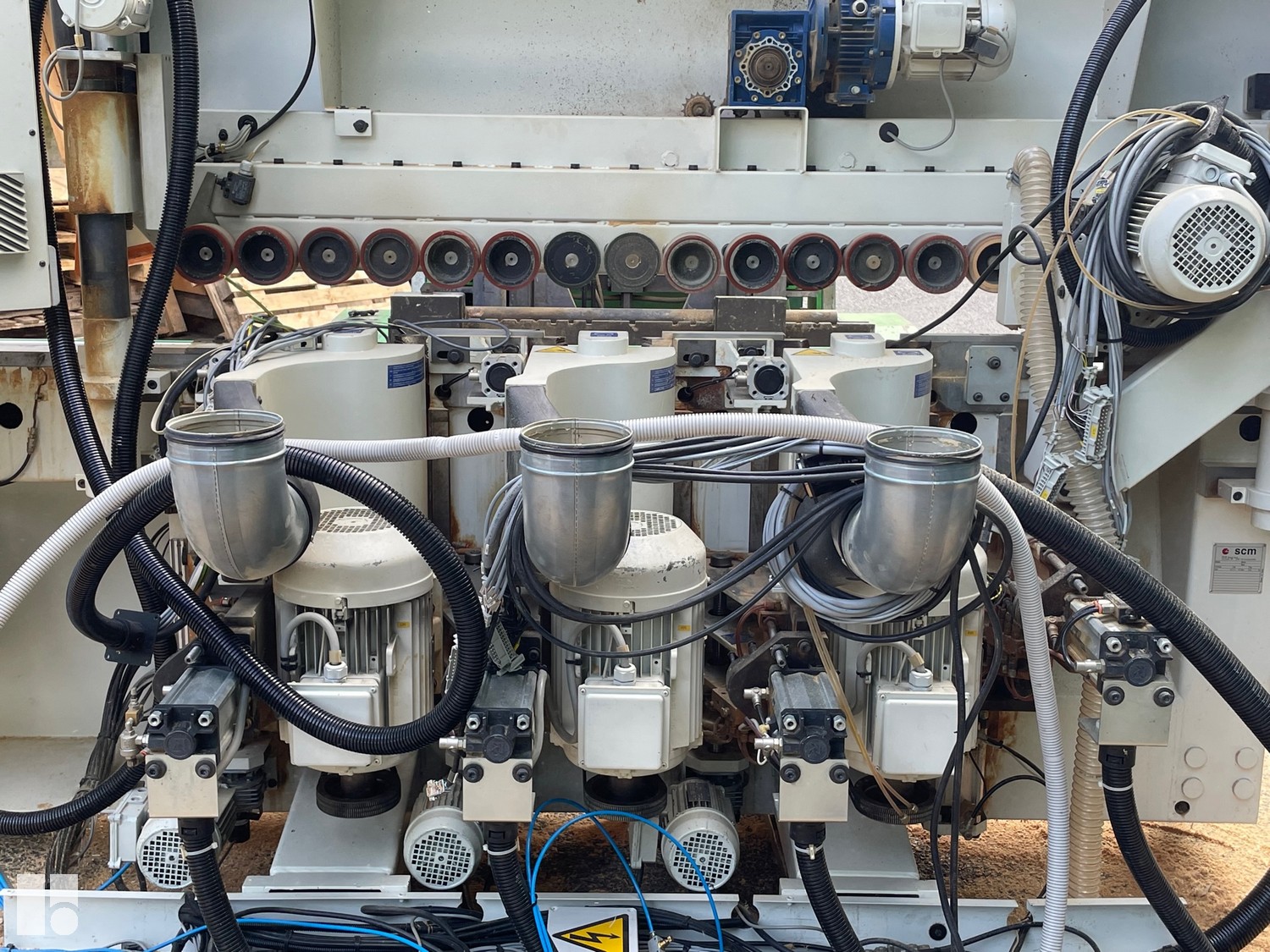

1ST PROFILING SPINDLE:
Spindle shaft diameter 50 mm
Shaft length 320 mm
Spindle motor 7.5 kW
Shaft rotation speed 6000 rpm
Maximum tool diameter applicable 220 mm
Profiling spindle with direct and reverse rotation

2ND PROFILING SPINDLE:
Spindle shaft diameter 50 mm
Shaft length 320 mm
Spindle motor 7.5 kW
Shaft rotation speed 6000 rpm
Maximum tool diameter applicable 220 mm
Profiling spindle with direct and reverse rotation

3RD PROFILING SPINDLE:
Spindle shaft diameter 50 mm
Shaft length 320 mm
Spindle motor 7.5 kW
Shaft rotation speed 6000 rpm
Maximum tool diameter applicable 220 mm
Profiling spindle with direct and reverse rotation

GLASS BEAD RECOVERY UNIT:
Blade diameter 220 mm
3 kW motor power

GRUPPO RECUPERO LISTELLO FERMAVETRO:
Diametro lama 220 mm
Potenza motore 3 Kw
Shaft diameter 40 mm, L=130

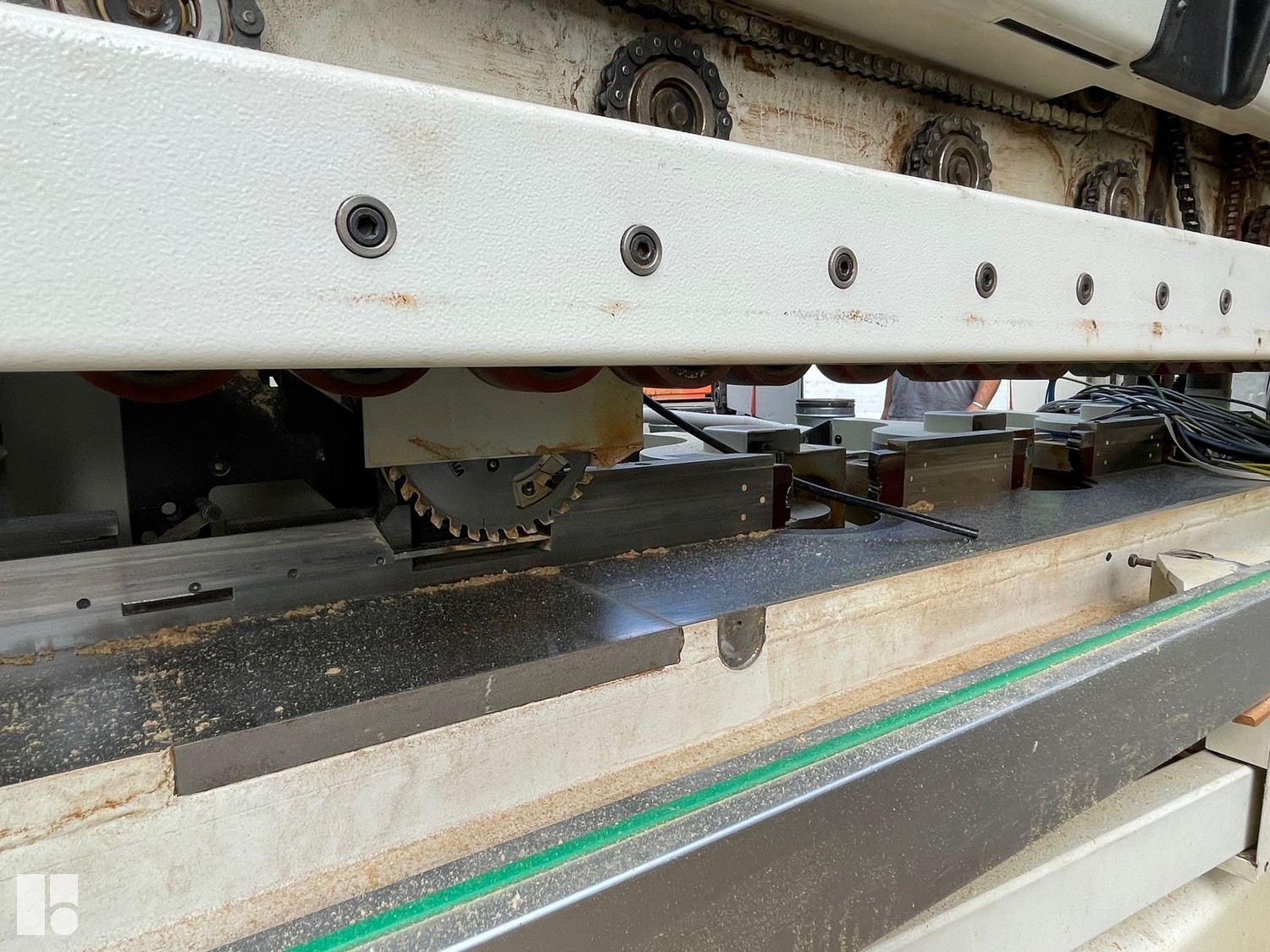

FEED DEVICE:
Transmission by cardanic joints
Air-adjustable work pressure
Manual feed advance speed
Motor power advance 0.75 kW

Complete with Vivaldi utensils:

68-68 / 78-78 / 78-92

61/68 Aluminum wood
