CASADEI
C4

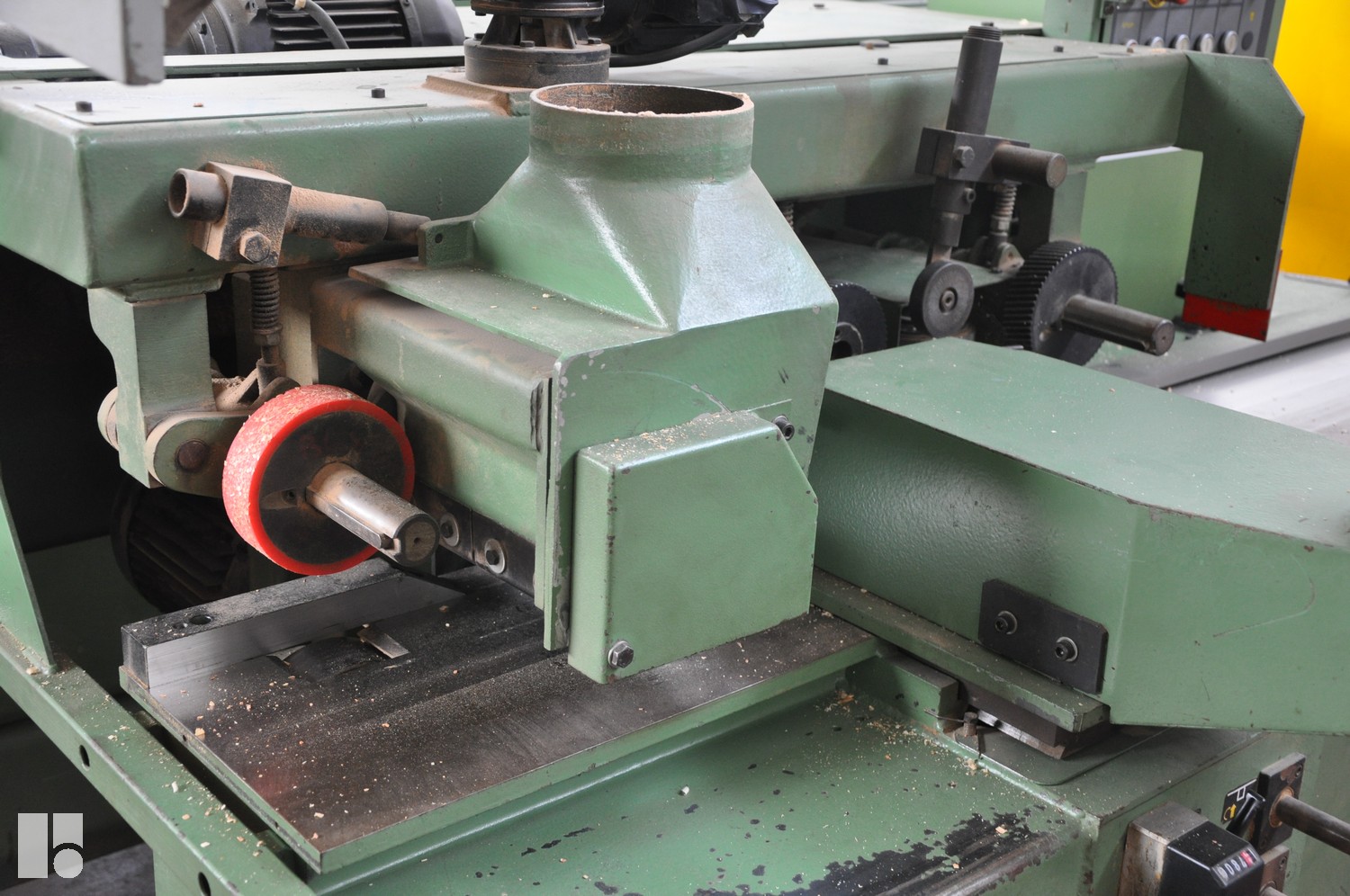

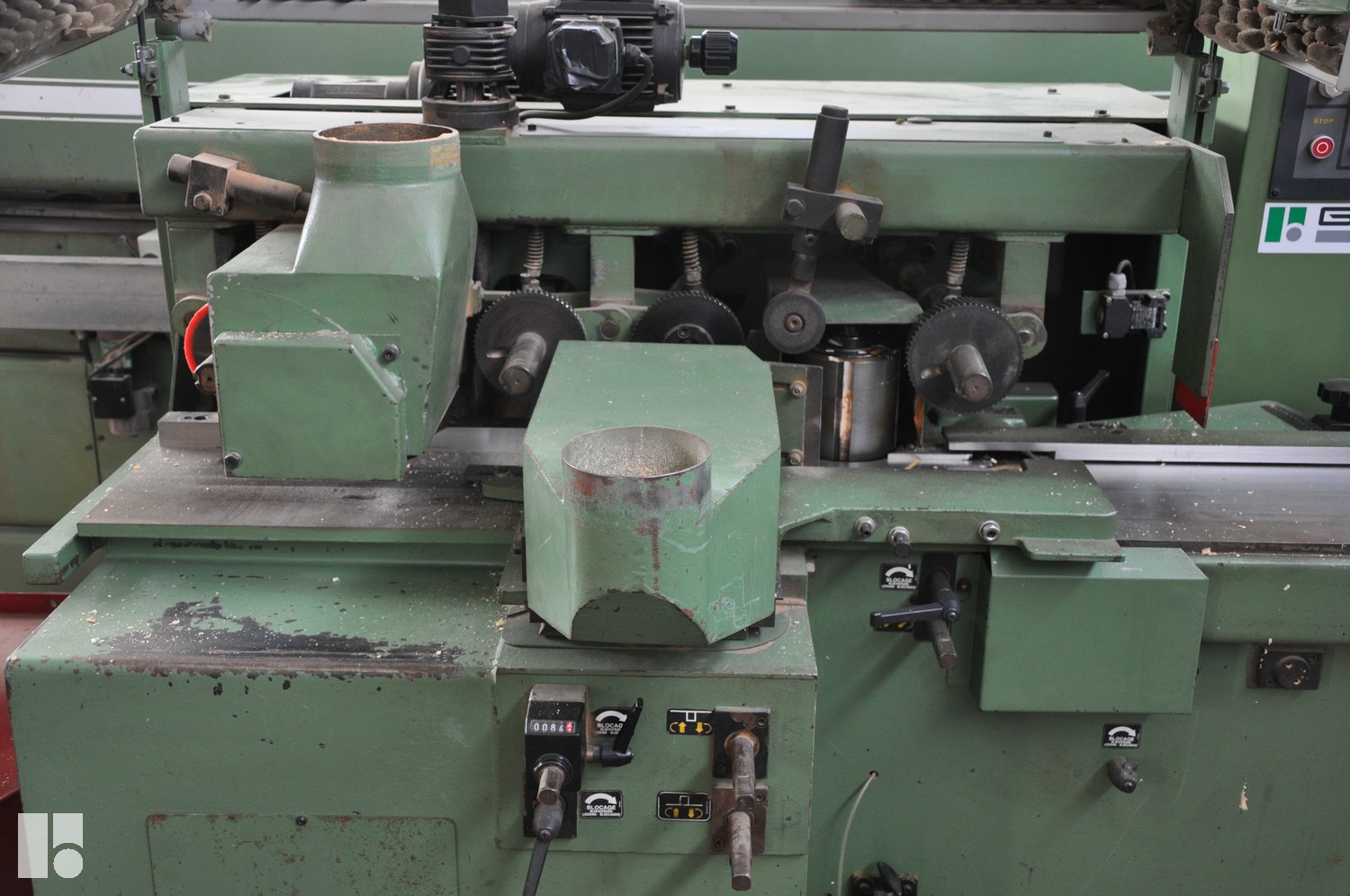

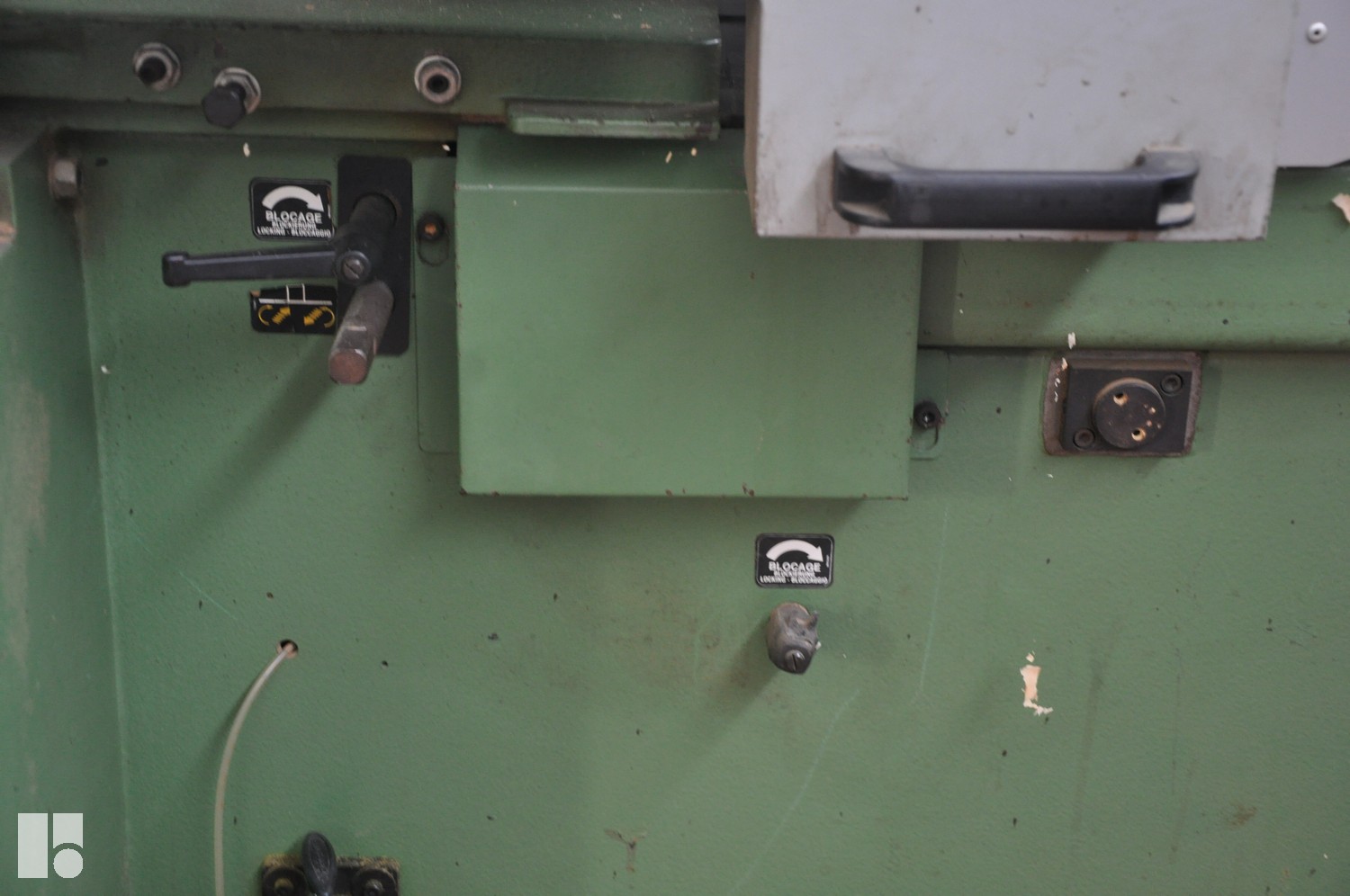

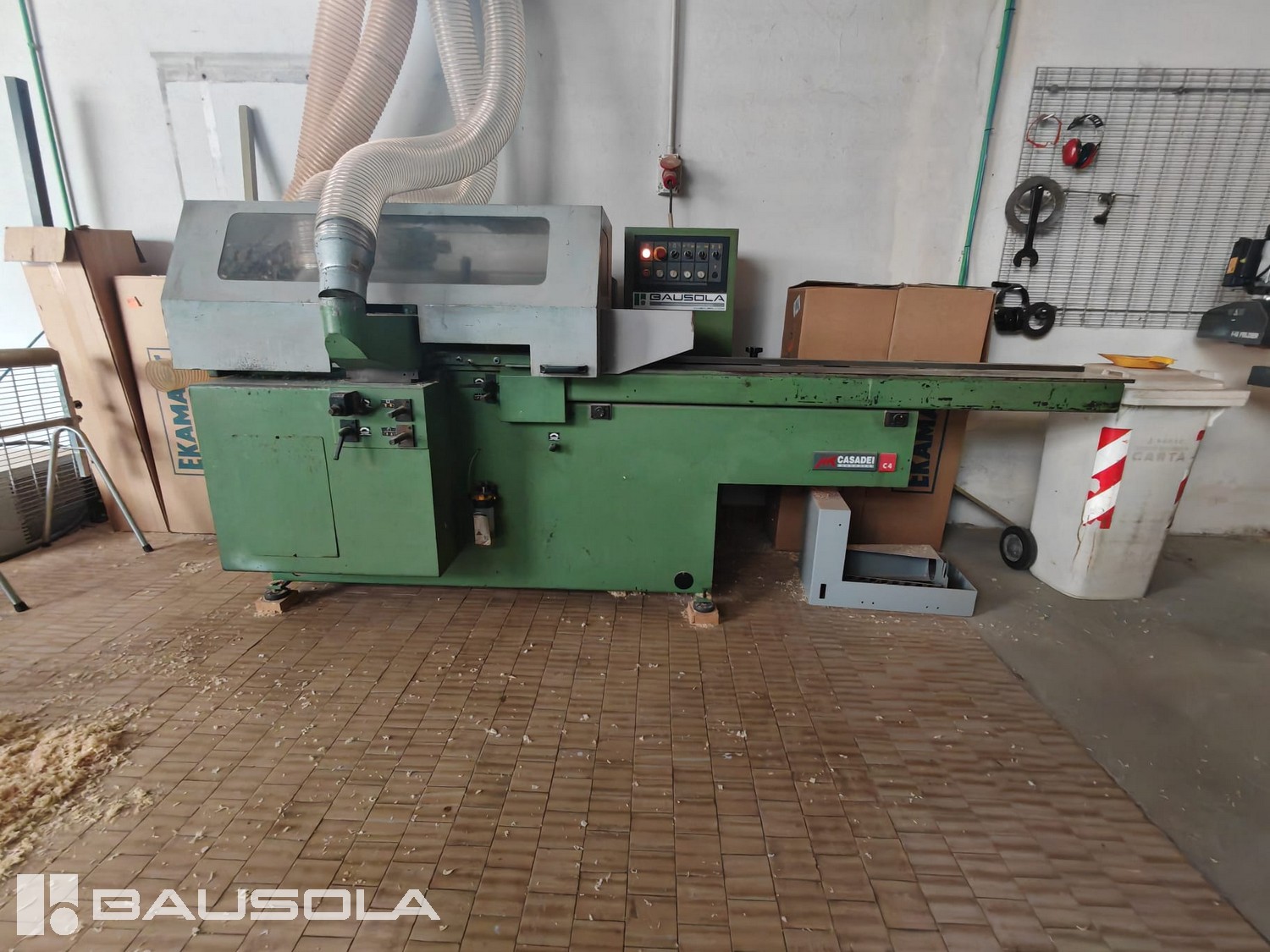

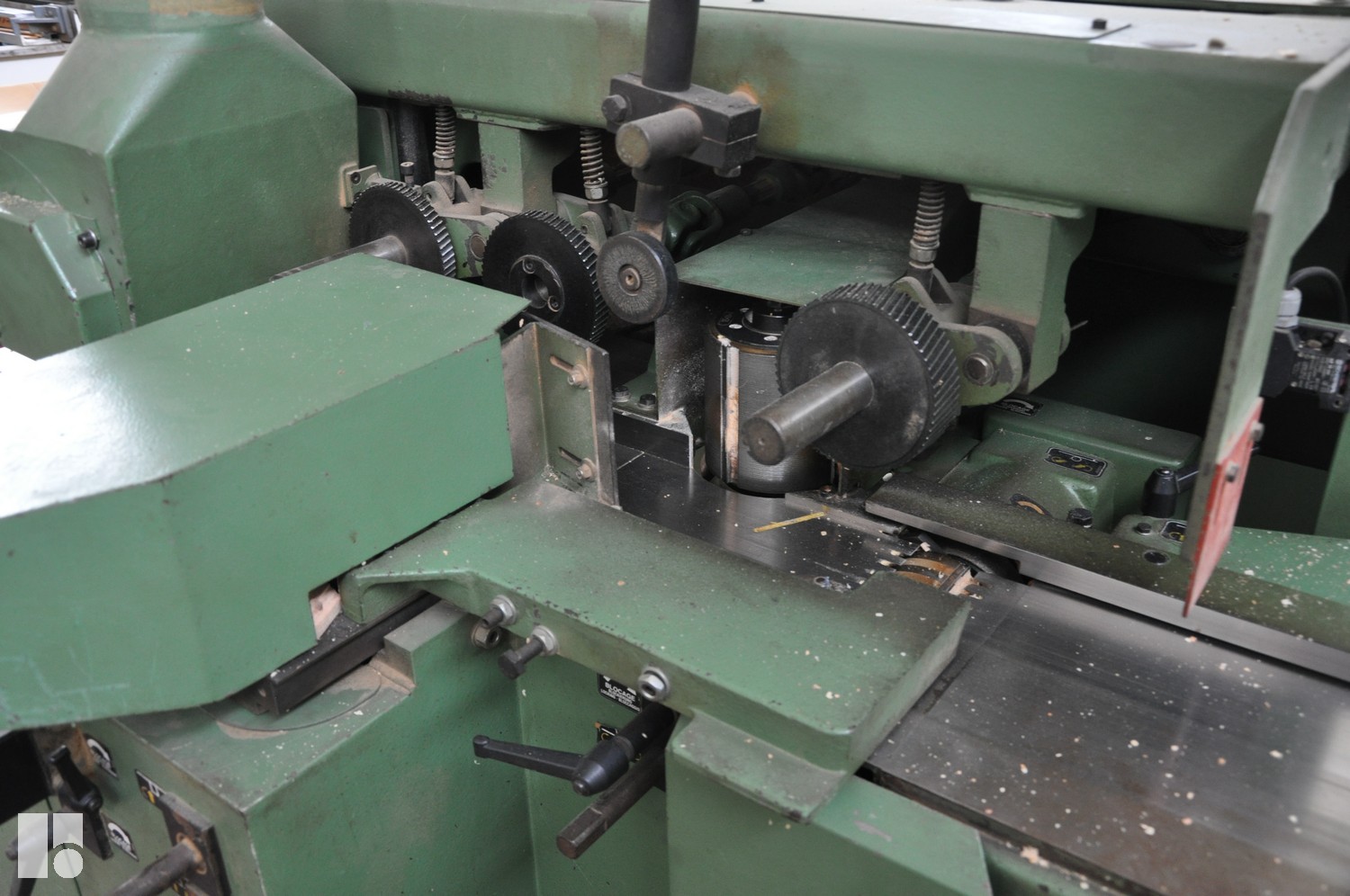

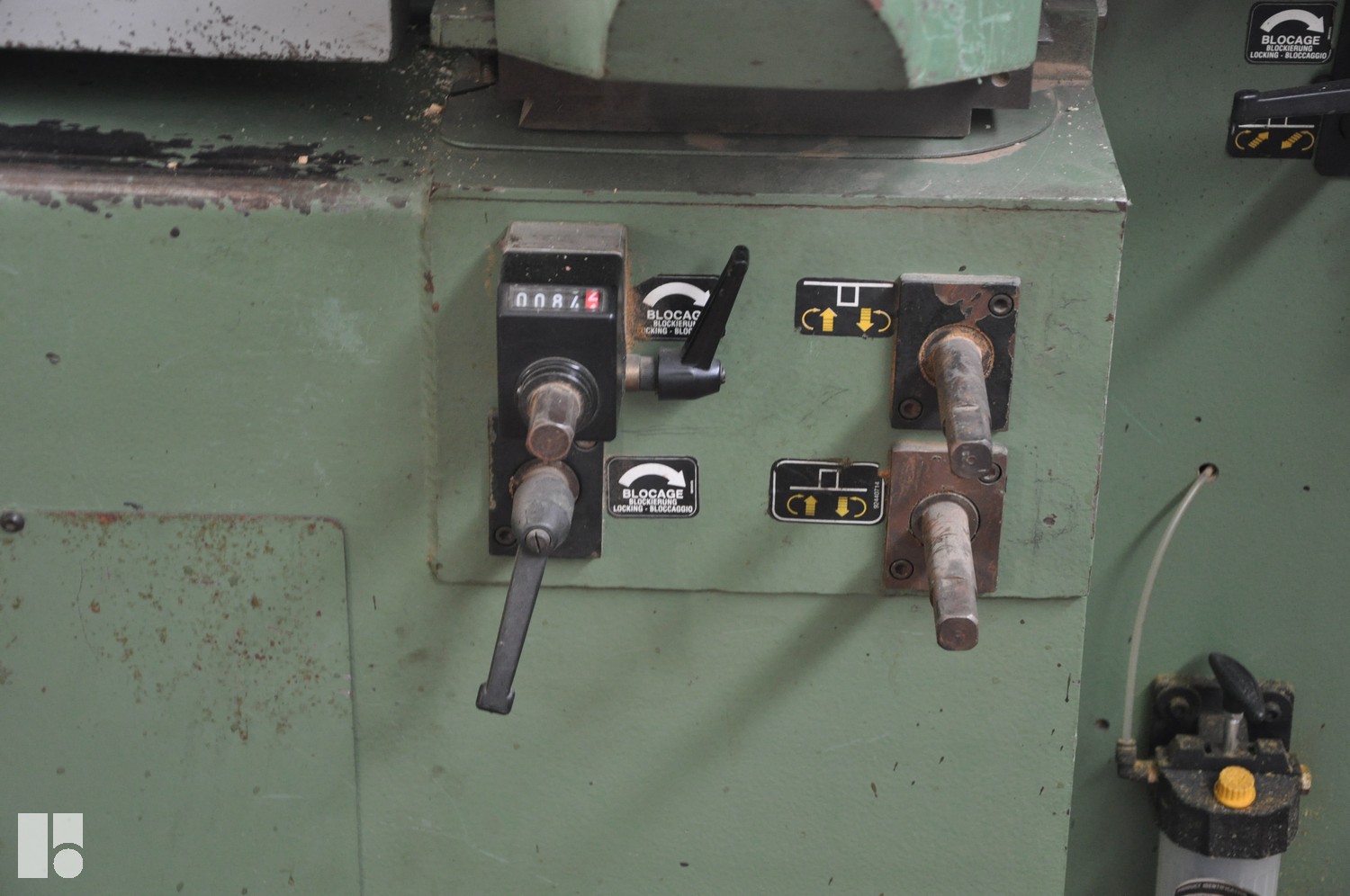

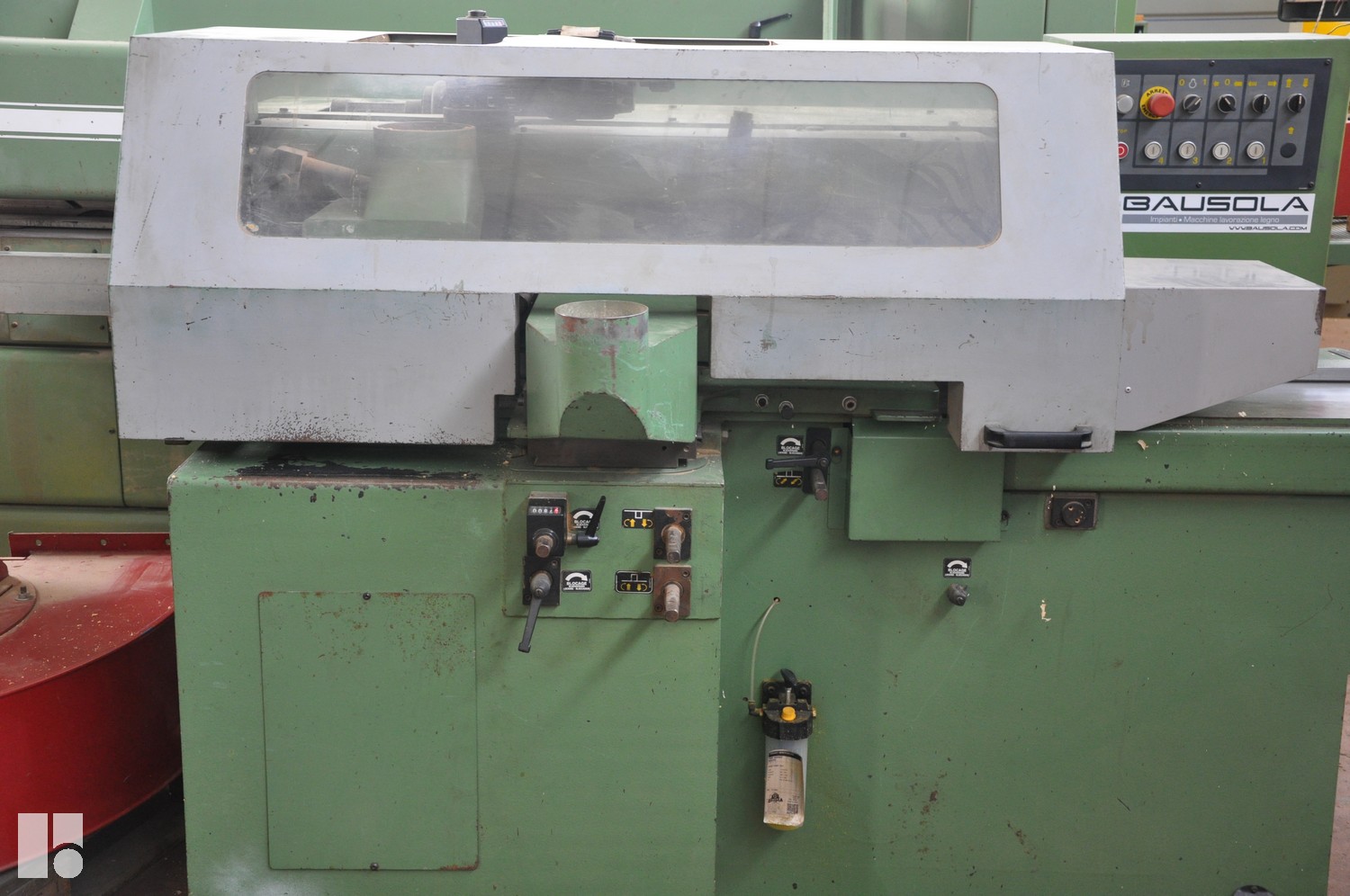

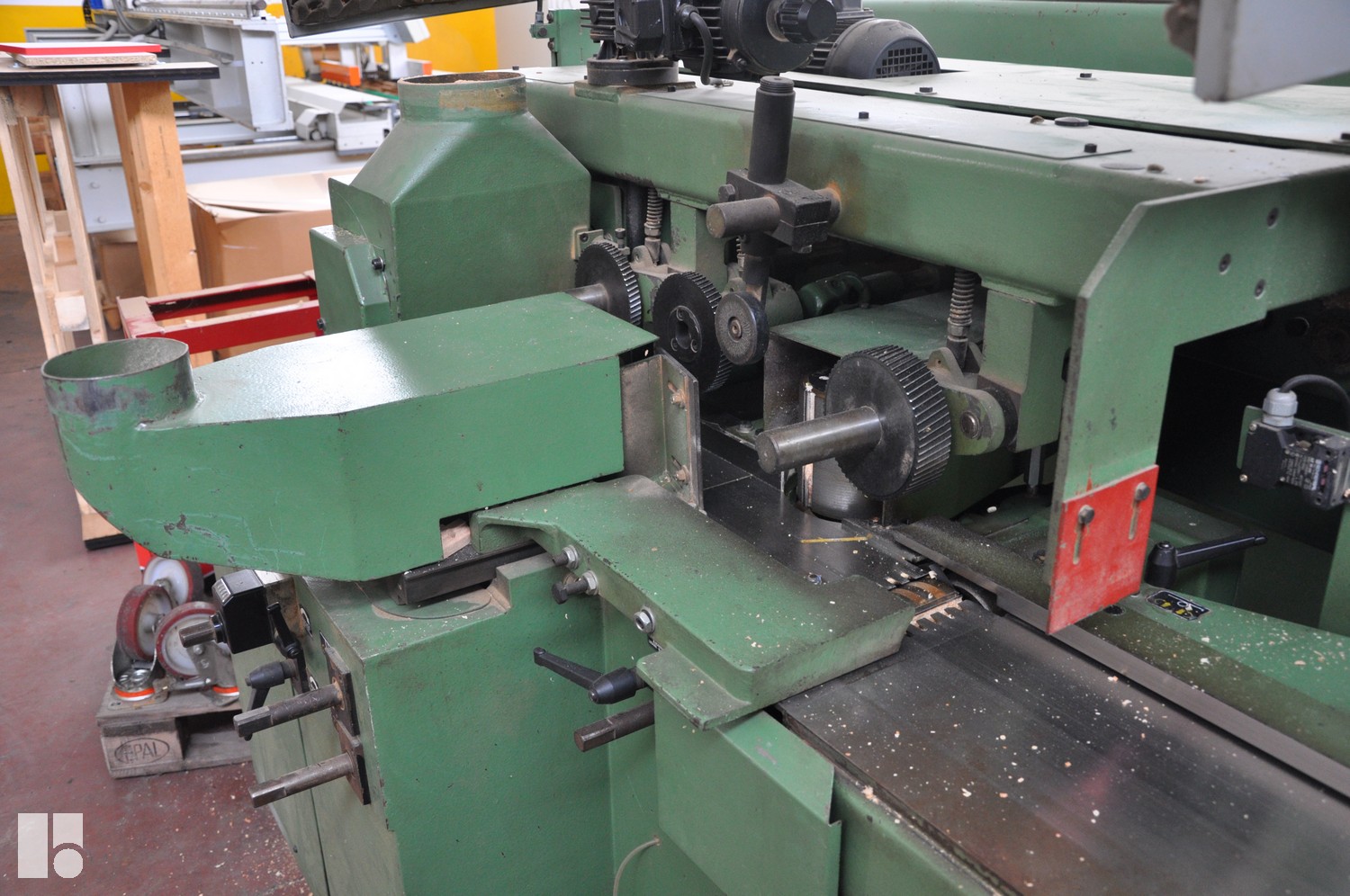

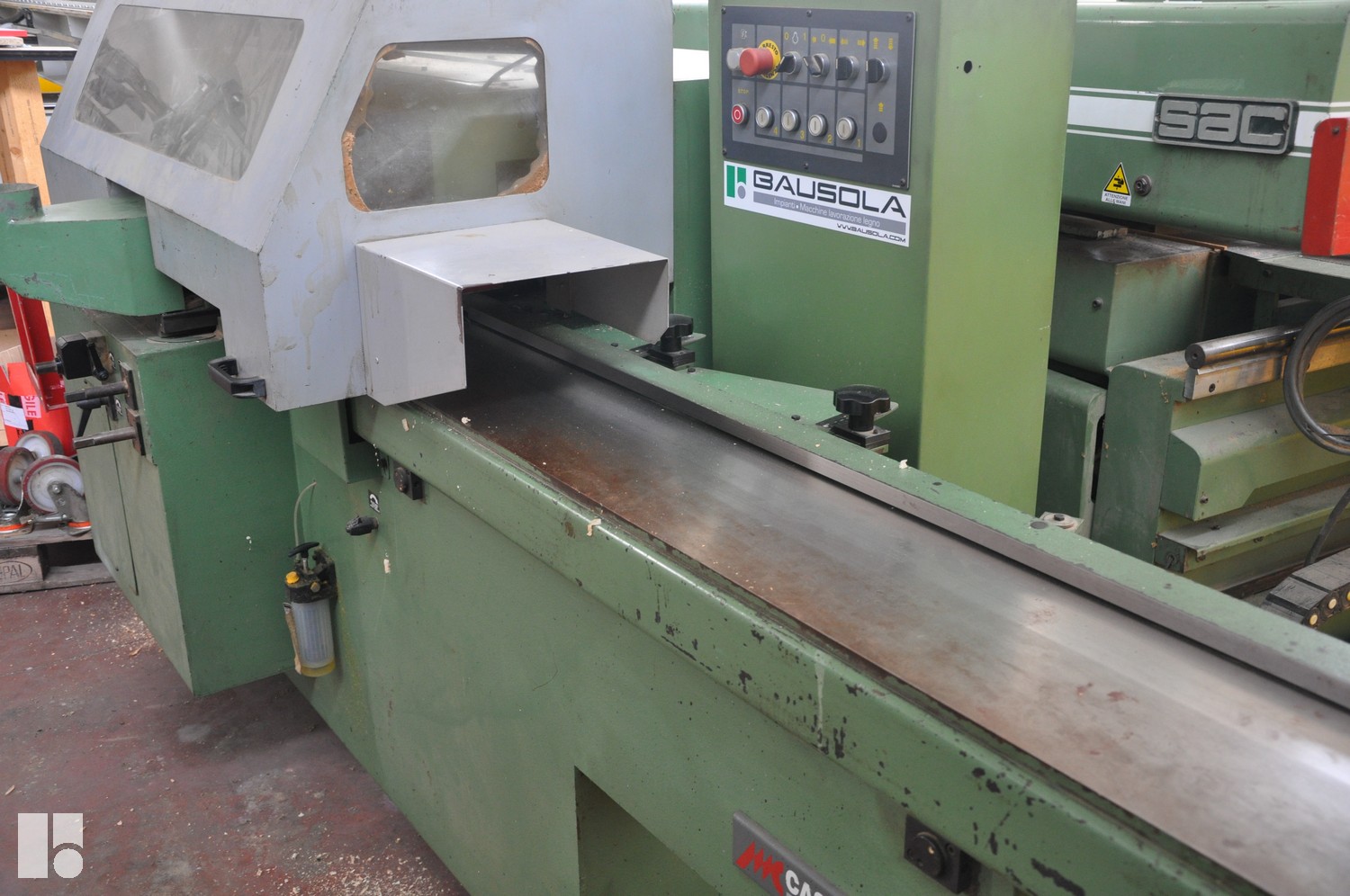

Casadei C4 Four-Sided Planer
Code: 1019
restore Production year: 1991 error_outline Status: Discreet
domain Availability: In stock check_circle EC legislation: Not compliant
Effective width:
220 mm
Effective height:
120 mm
Shafts number:
4
Milling cutter presence
Description
Casadei C4 Four-Sided Planer
CASADEI C4
Working width: 220 mm
Working height: 120 mm
Number of spindles: 4
Spindle configuration:
1. Bottom
2. Right
3. Left
4. Top
Spindle speed: 6000 rpm
Nscuu Eexxiw Todaskt
Spindle diameter: 40 mm
Two feed speeds: 6–12 m/min
Tool size: 125–140 mm
Technical details
Effective working
Effective width
220 mm
Effective height
120 mm
Details
Shafts number
4
Shafts diameter
40 mm
Motors number
4
Entrance plan length
2000 mm
Advancing type
Springs
Movement type
Electric
Milling cutter presence
check_circle
Lubrication
Manual
Generals
Sizes*
3250x1200x1530 mm
Weight*
1300 kg
Total kW*
18
*Shown values may vary depending on the configuration of the machine.
