MARZANI
MULTICENTER 300 2F
Work center for windows and doors
Code: 2376
restore Production year: 1999 error_outline Status: Good
domain Availability: In stock check_circle EC legislation: Compliant
Controlled axes number:
3
Description

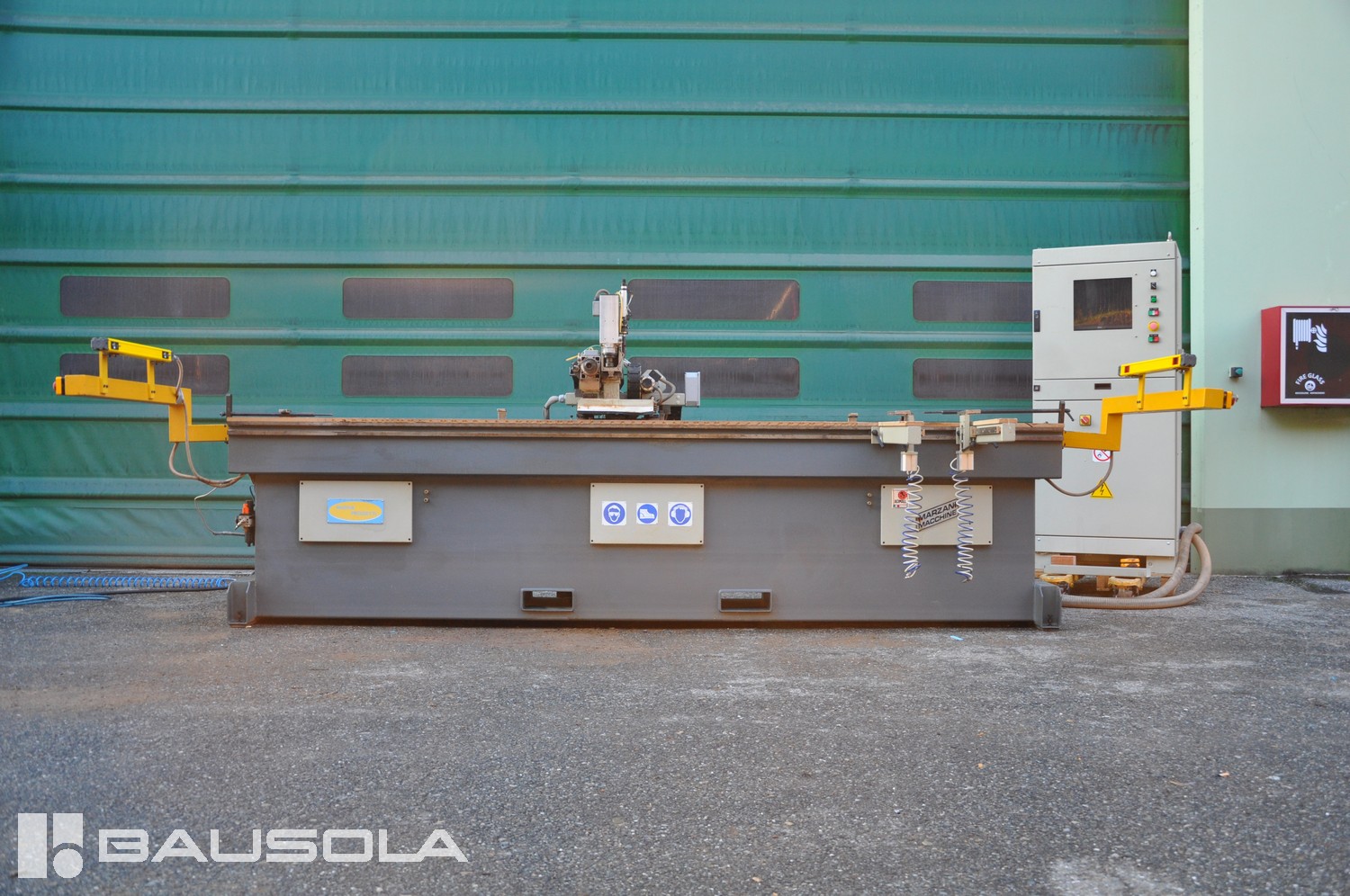

Work center for windows and doors
MARZANI MULTICENTER 300 2F
Machine provided with a steel skeleton with sliding guides on tracks and ball sliding blocks.
Axes movement by means of ball screws controlled by C.C. motors and decimal resolution Encoder.

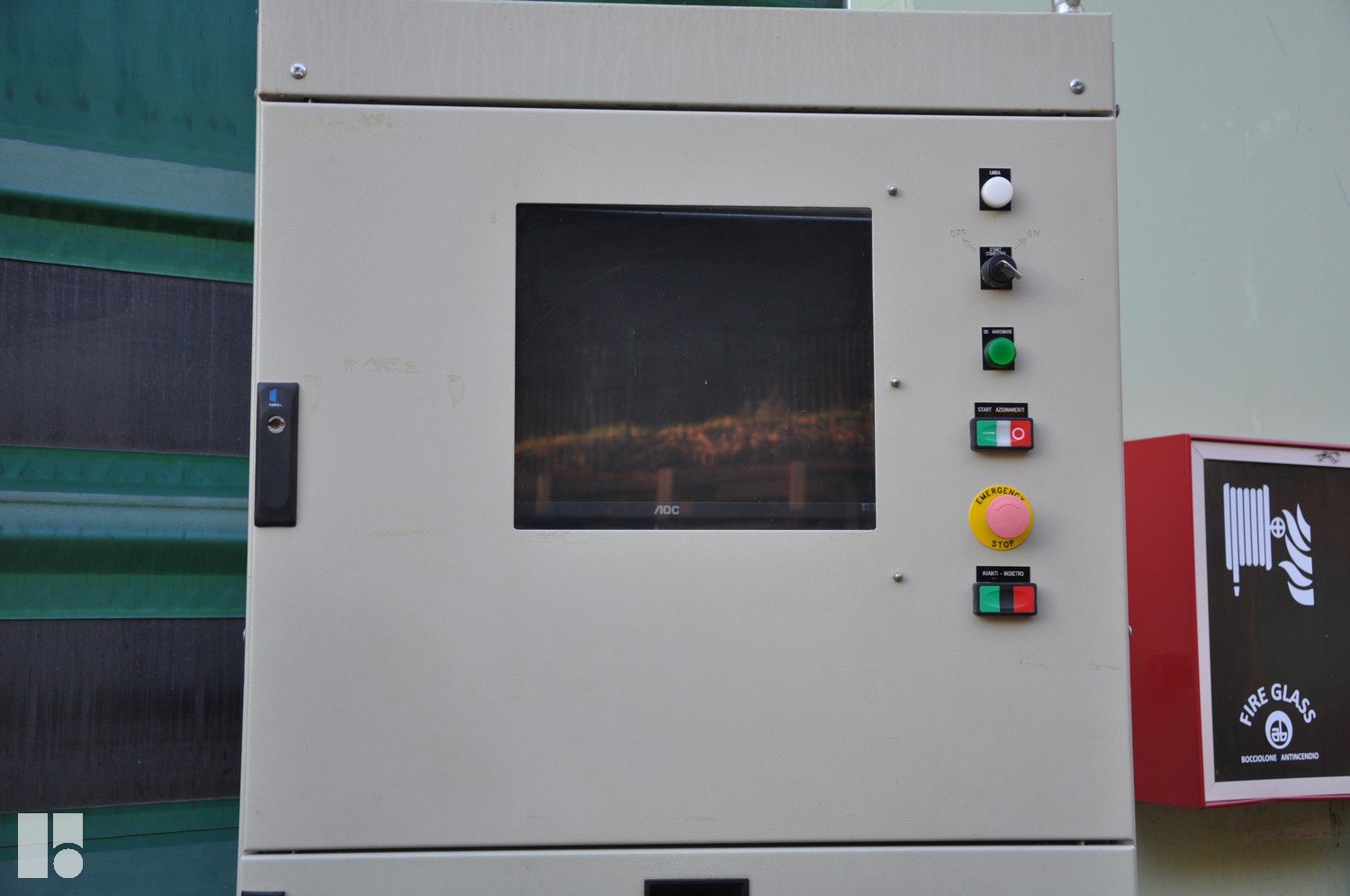

Machine tasks controlled by a personal computer with Windows 10
Linear and circular interpolation on each milling axis.
Machine made of:

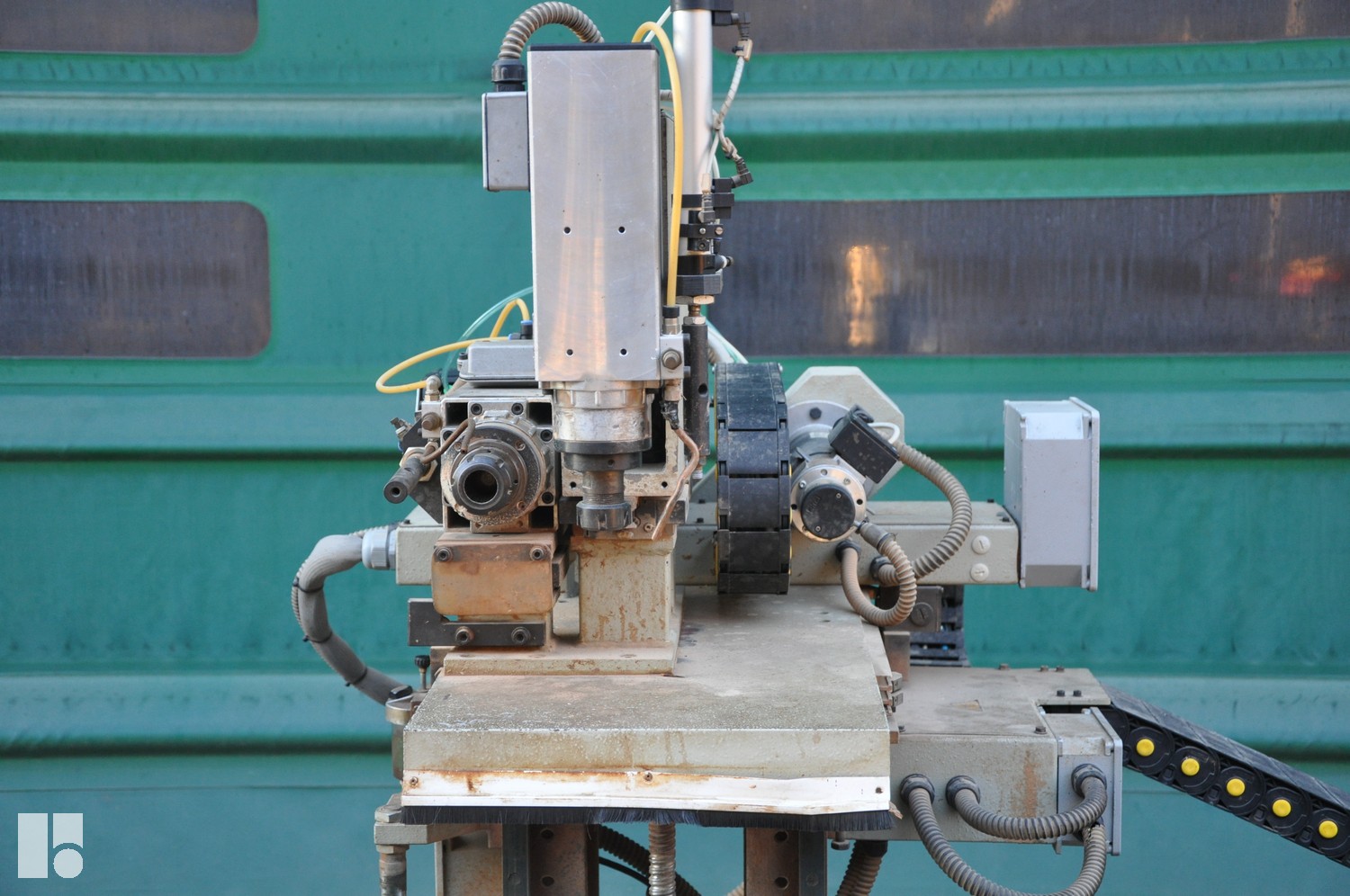

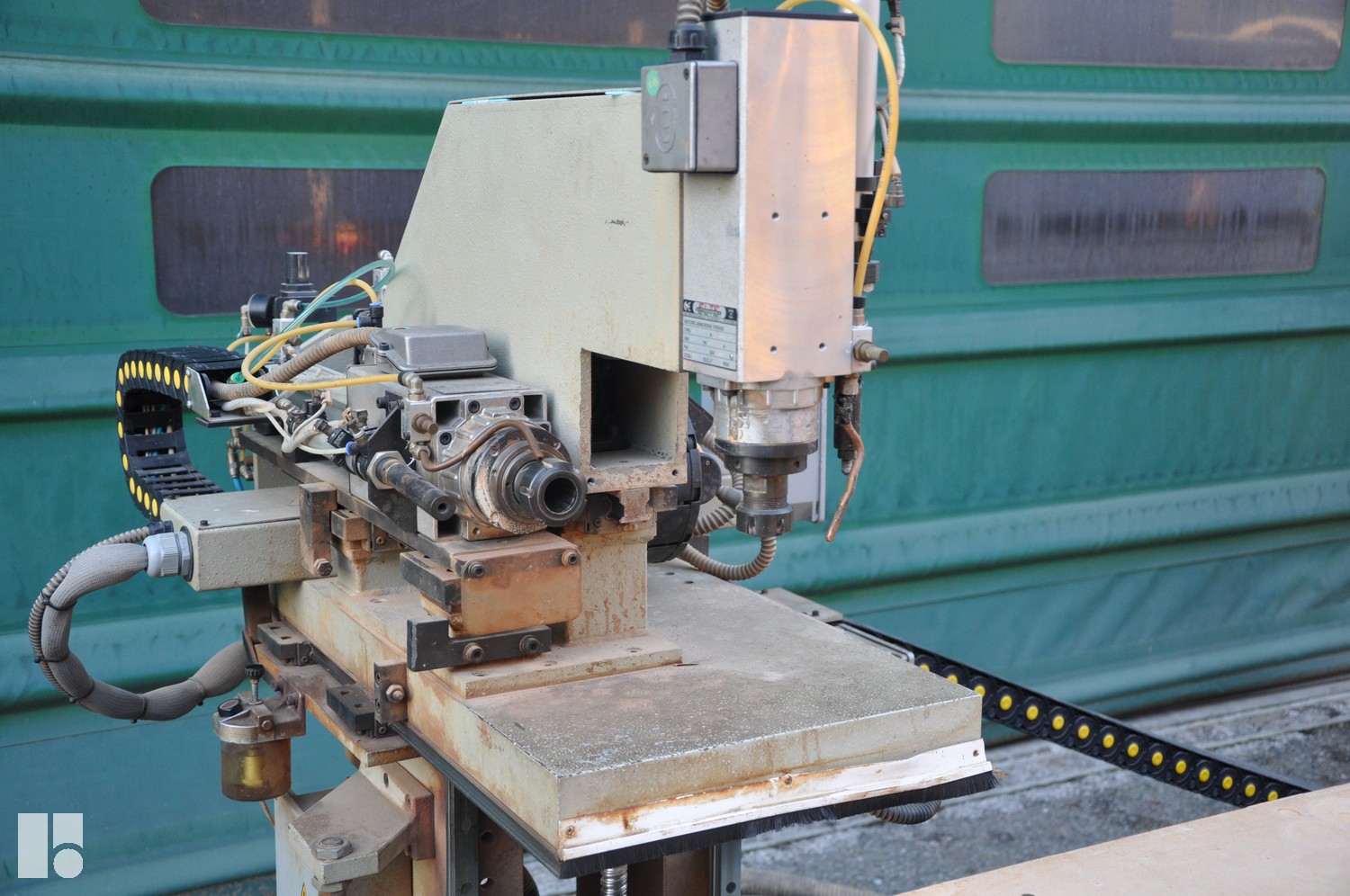

Horizontal milling tool with kW 3,3 high-frequency motor
Vertical milling tool with kW 2,2 high-frequency motor
High-frequency motor revolution adjustment by inverter
Incremental tracer points

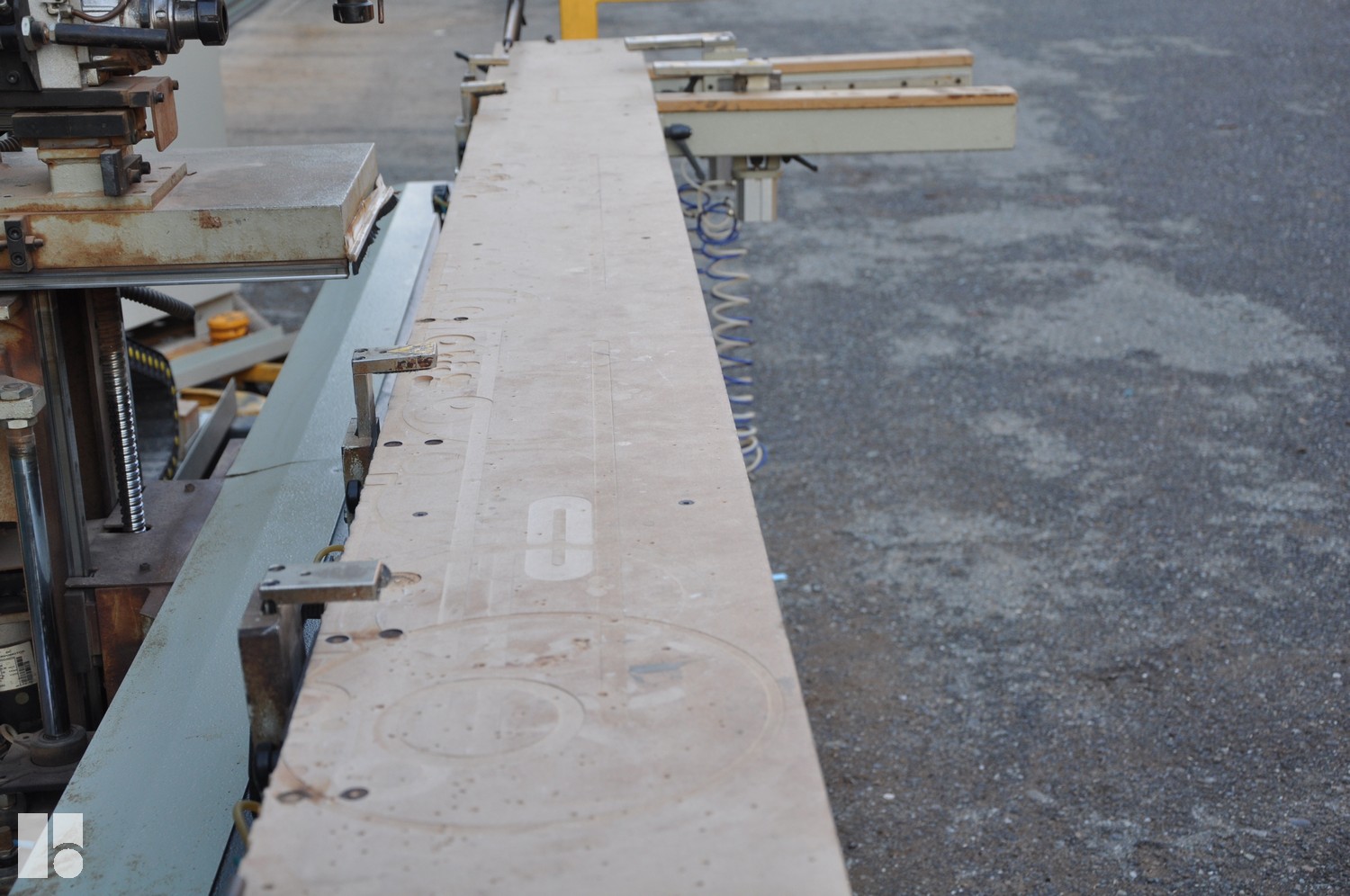

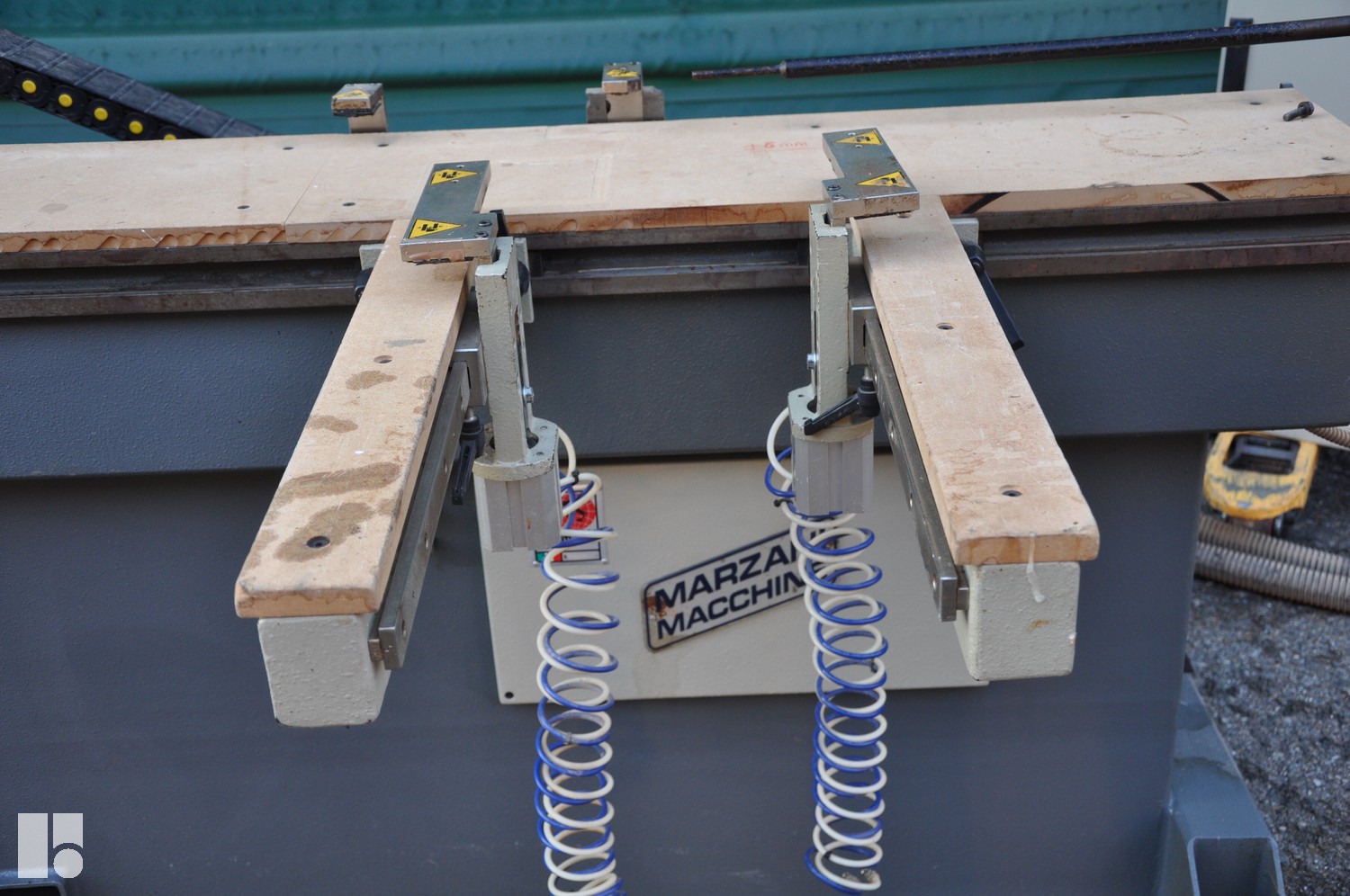

N. 2 front supports
Technical details
Effective working
Effective X
2800 mm
Eeffective Y
300 mm
Effective Z
100 mm
Details
Heads number
1
Controlled axes number
3
Main motor power
3,3 kW
Mils connection drive motor
ER32
Horizontal motors (Optional)
check_circle

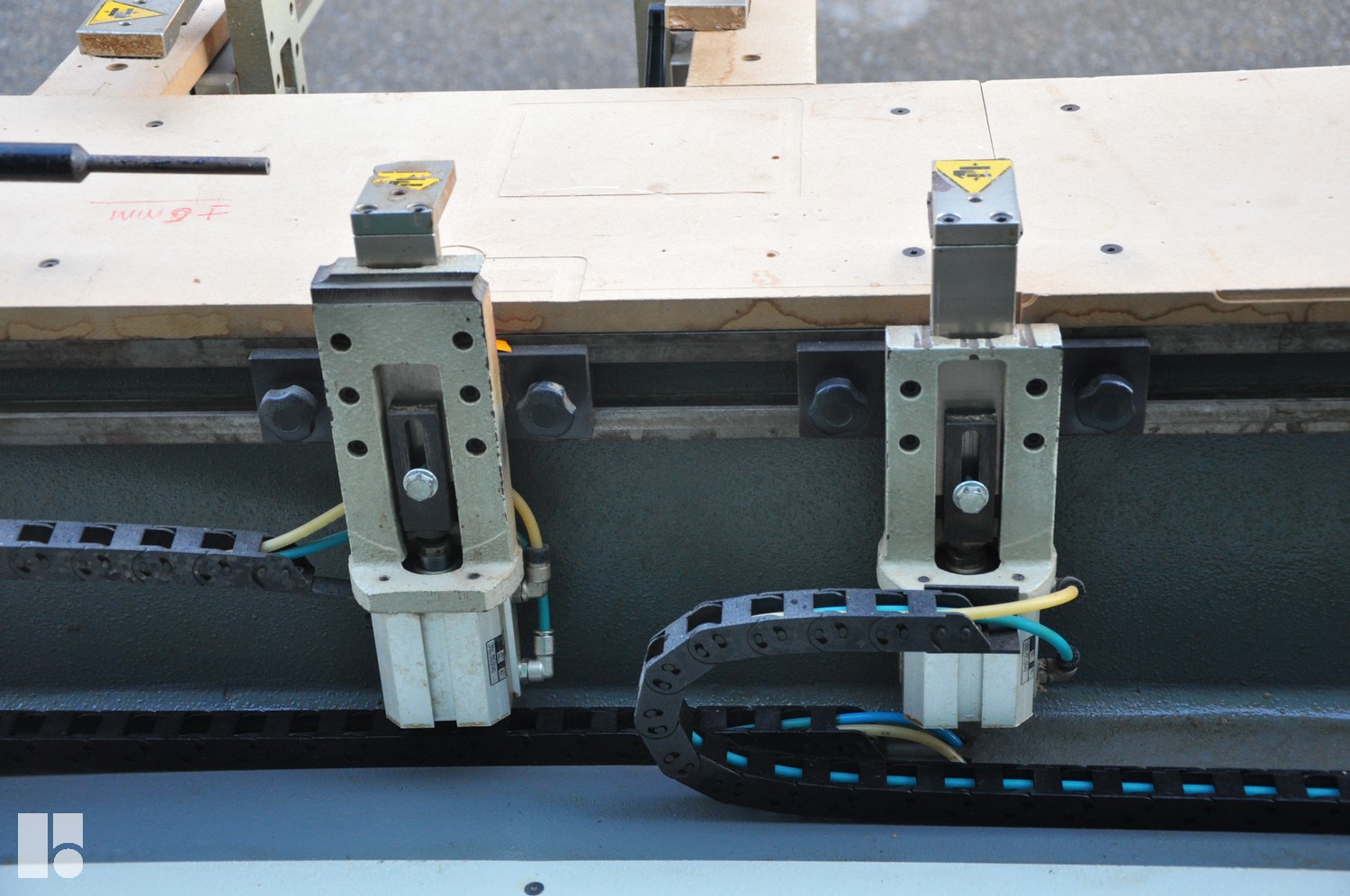

Grips number (Optional)
4
Security
Photocels
Software/C.N.
Software
Dedicated
Generals
Sizes*
4800x2350x1600 mm
Weight*
2500 kg
Total kW*
8
*Shown values may vary depending on the configuration of the machine.
