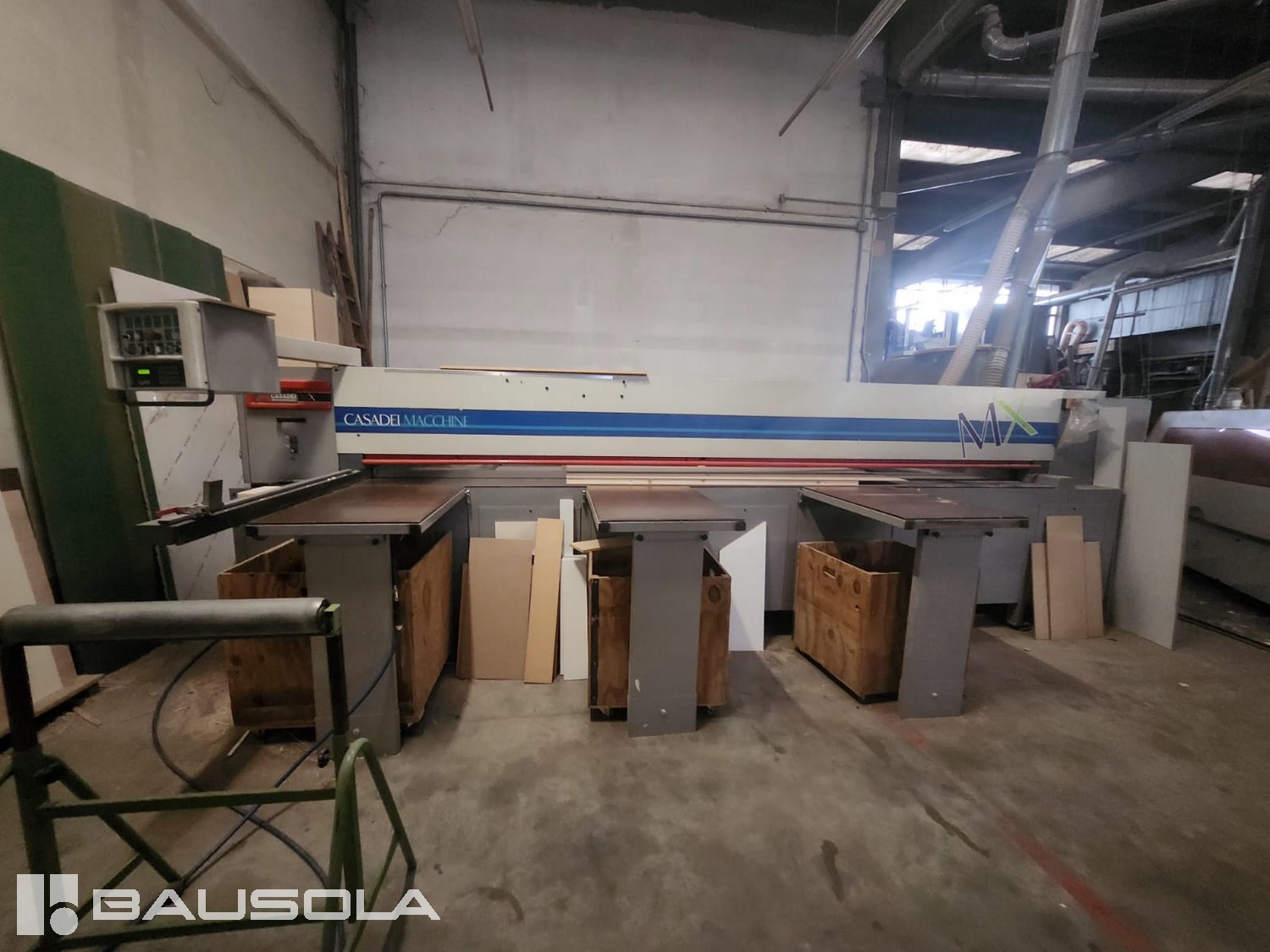

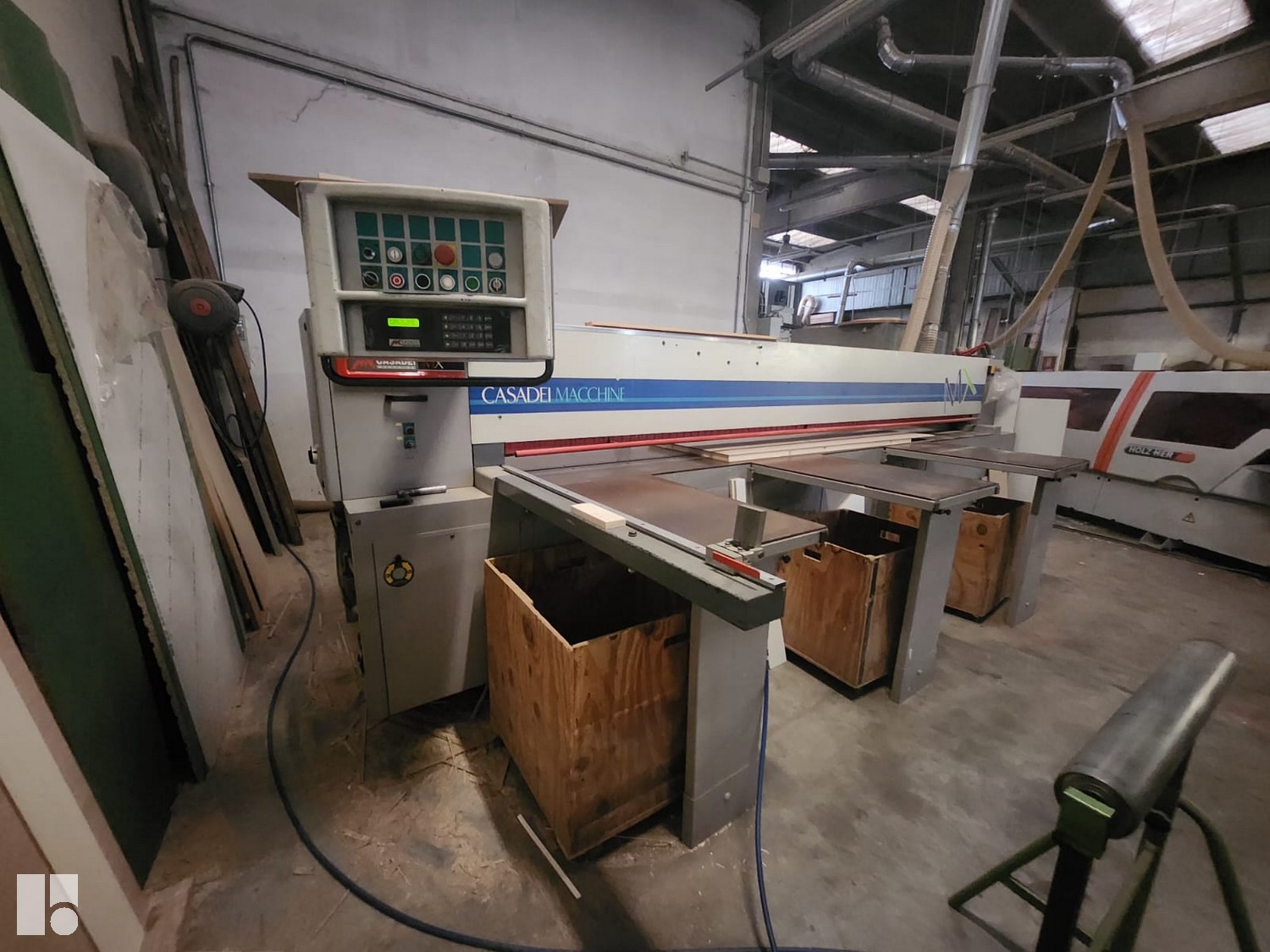

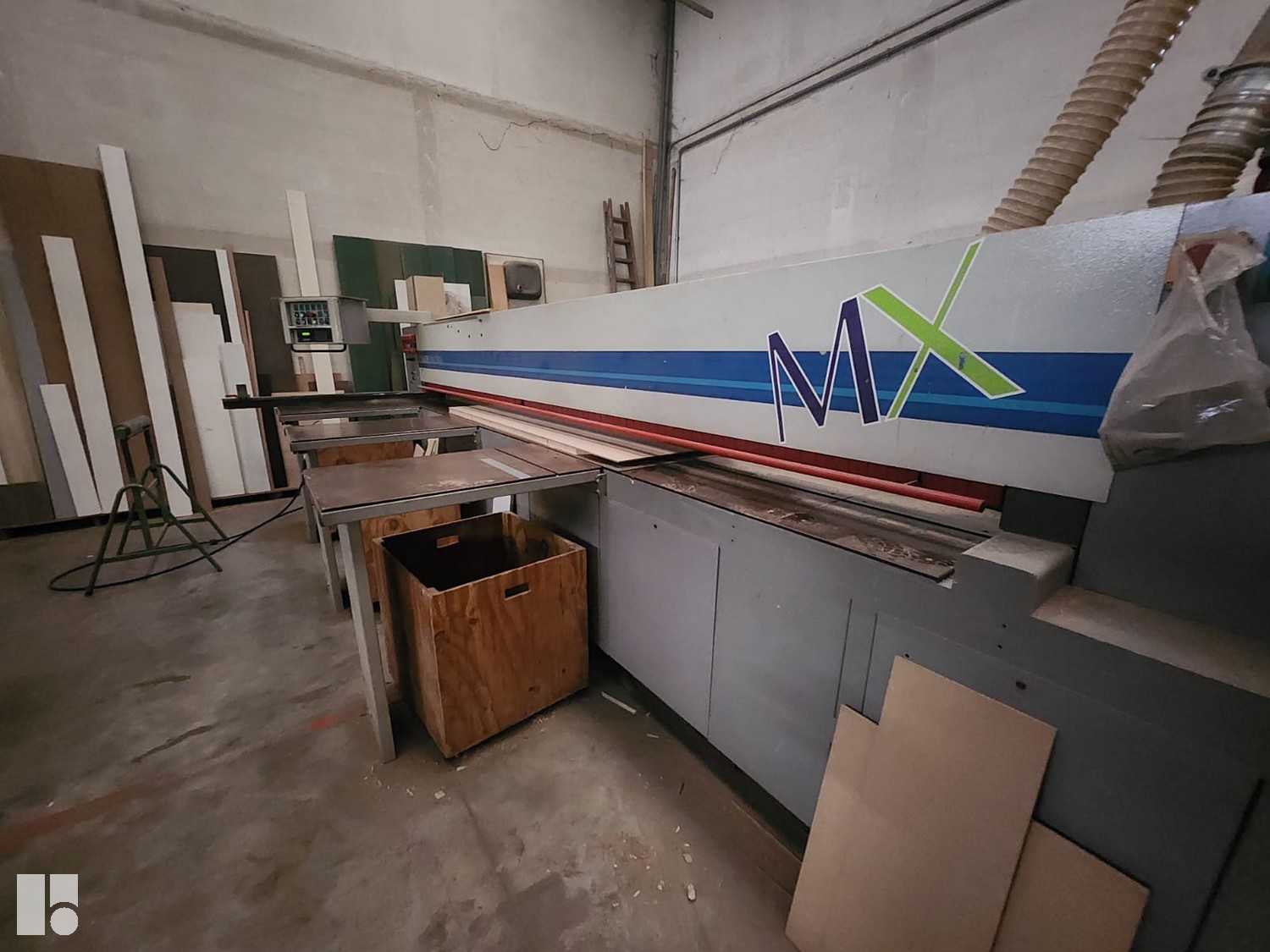

CASADEI
LINEA MX
Automatic panel saws
Code: 2513
restore Production year: 1999 error_outline Status: Good
domain Availability: In stock check_circle EC legislation: Compliant
Effective length:
4300 mm
Effective width:
2500 mm
Effective thickness:
55 mm
Scoring (Optional)
Description
Automatic panel saws
CASADEI LINEA MX
Blade projecttion at 90° = 55 mm
Blade projecttion at 45° (single panel) 42 mm
Main Blade diameter 250 mm (Z=80)
Scoring Blade diameter 125 mm (Z=24)
Main Blade arbor diameter 30 mm
Scoring Blade arbor diameter 20 mm
Main blade rotation speed 5900 g/min
Scoring blade rotation speed 9100 g/min
Saw carriage variable feed speed 4-12 m/min
Technical details
Effective working
Effective length
4300 mm
Effective width
2500 mm
Effective thickness
55 mm
Details
Scoring (Optional)
check_circle
Front planes number
3
Grippers number
7
Generals
Sizes*
5500x5500x1700 mm
Weight*
2590 kg
Total kW*
7
*Shown values may vary depending on the configuration of the machine.
