Description

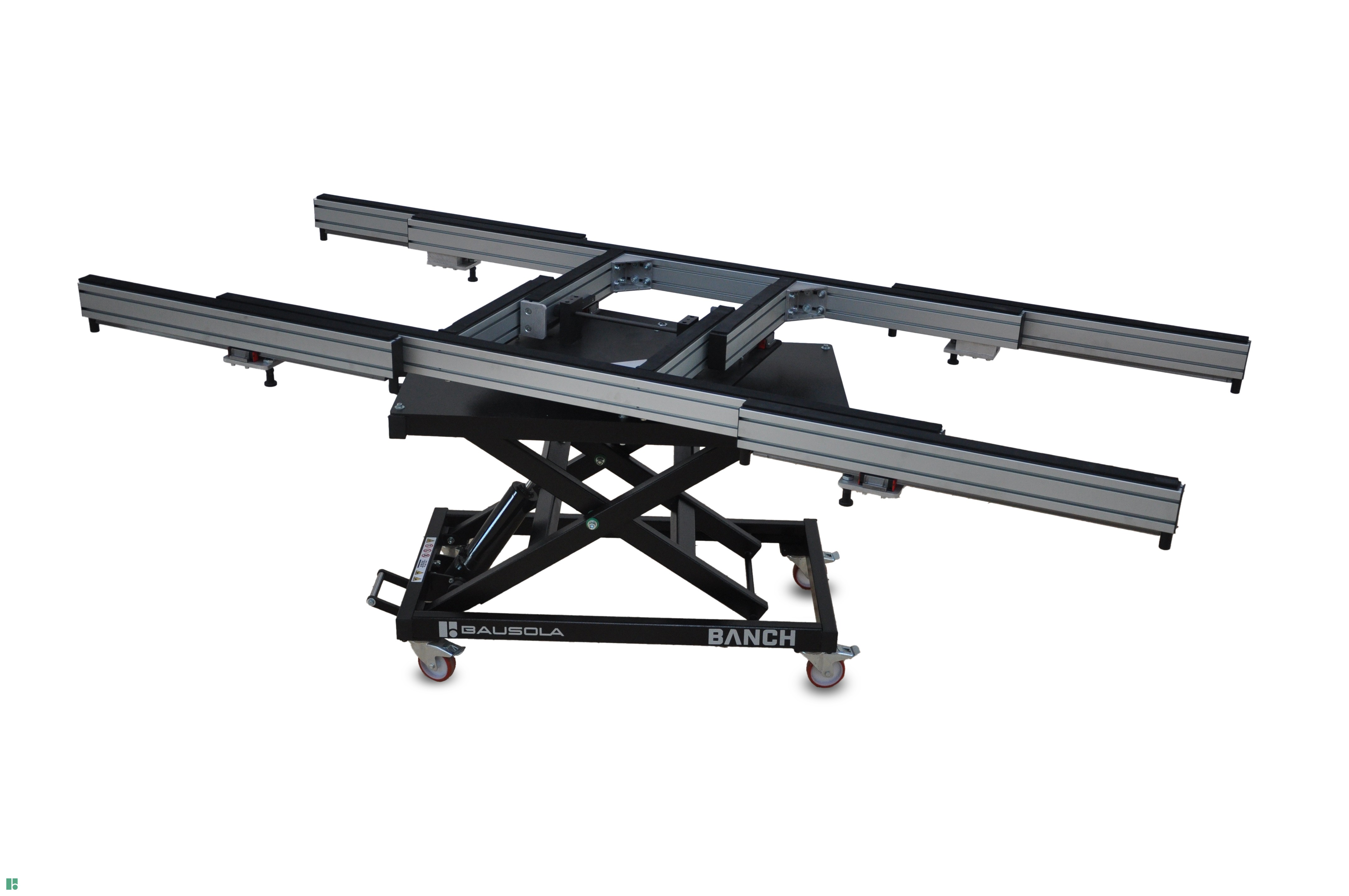

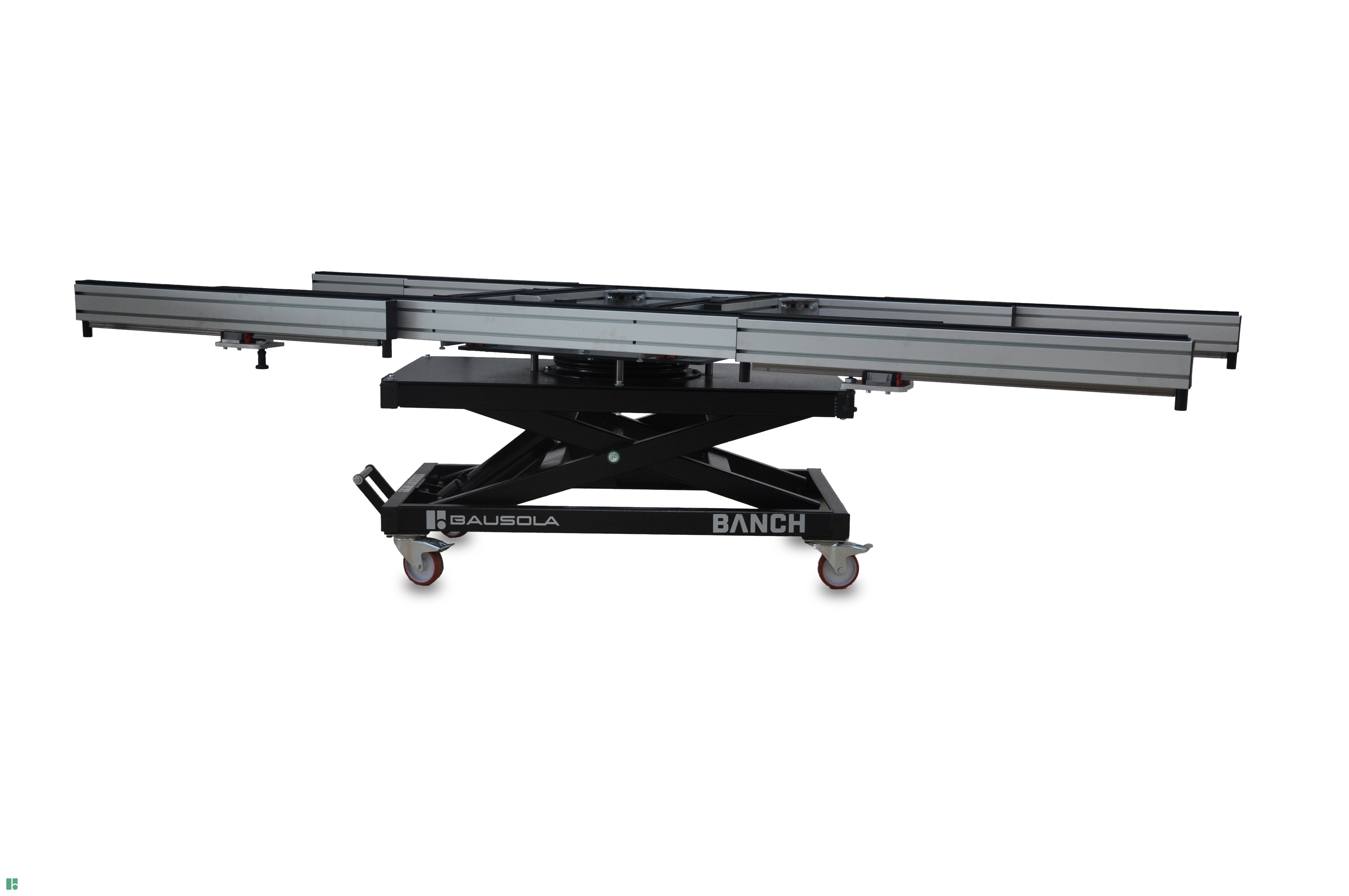

Smart Working table
BAUSOLA BANCH-I
The smart solution for your workplace
BANCH, THE ERGONOMIC AND FLEXIBLE WORKBENCH THAT MINIMIZES YOUR EFFORTS
IT’S MEANT TO HELP THE USER.
The ergonomic workstation adapts to the standards of every work activity and meets all mobilization needs: horizontal, vertical, rotating on itself.
It’s flexible, it widens and tightens to accommodate any size.
Technical Specifications:
lifting system: hydraulic with pedal pump
worktop dimensions:
width 750 > 1200 mm
length 1800 > 3100 mm
support surface 600 x 400 mm
variable height 600 > 1200 mm
manual opening
swivel work table top: professional mechanical fifth wheel with locking on cardinal points (revolver)
angle of rotation 360°
maximum load capacity 200 kg
Technical details
Details
Movement type
Trolleys
Generals
Sizes*
1800x750x1220 mm
Weight*
135 kg
*Shown values may vary depending on the configuration of the machine.
Support lenght up to 3 meters

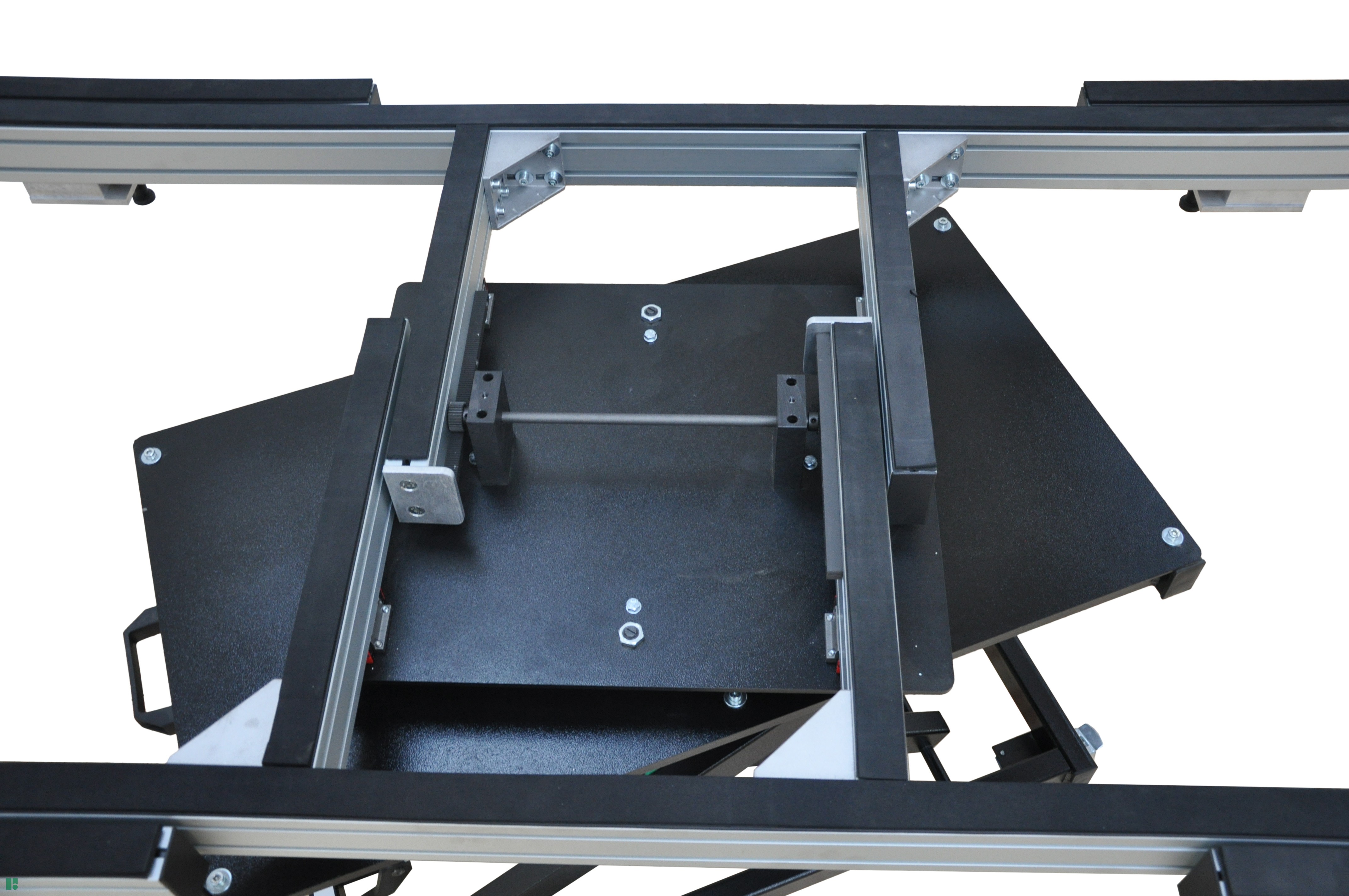

Self centering width handling

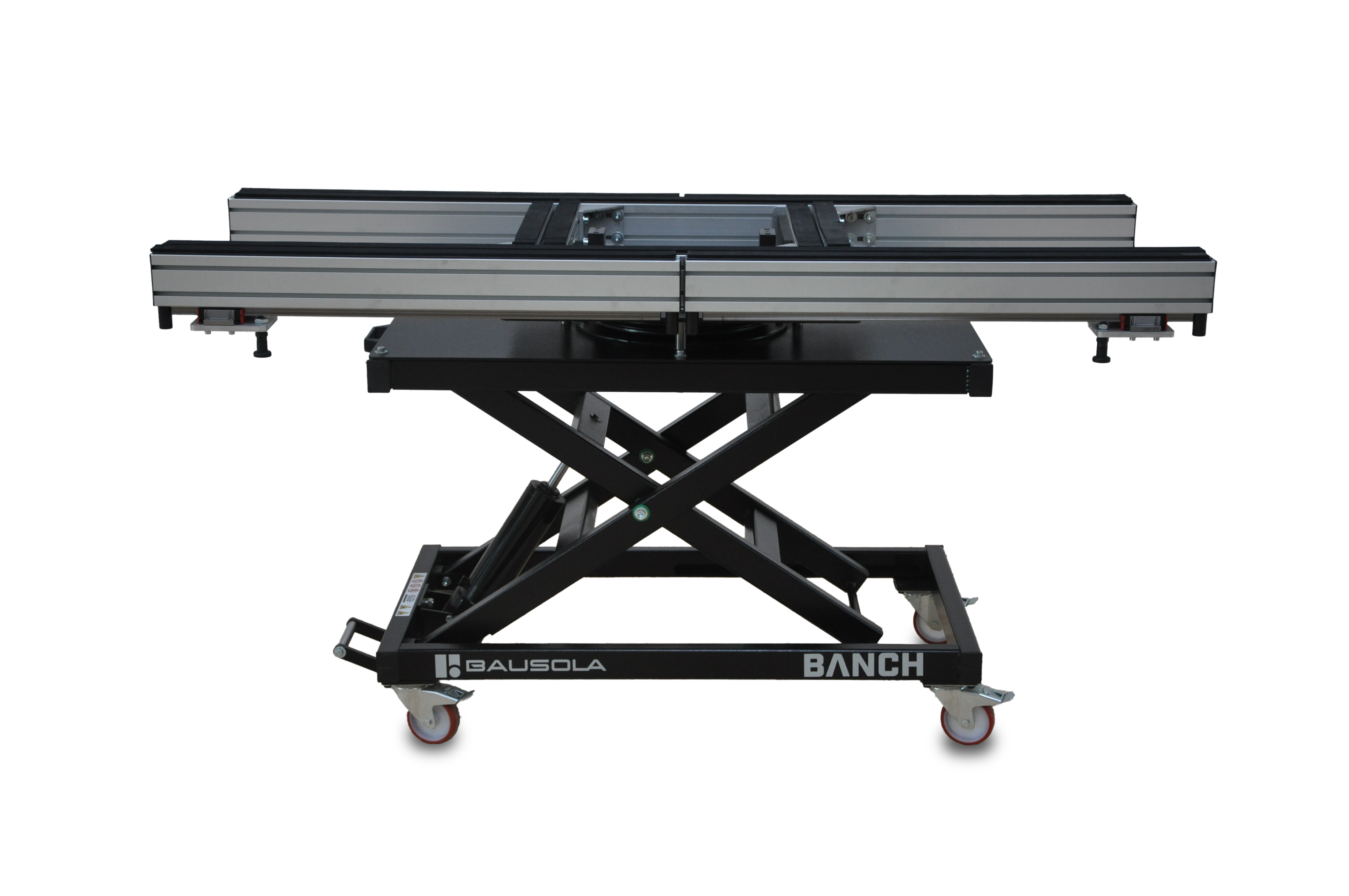

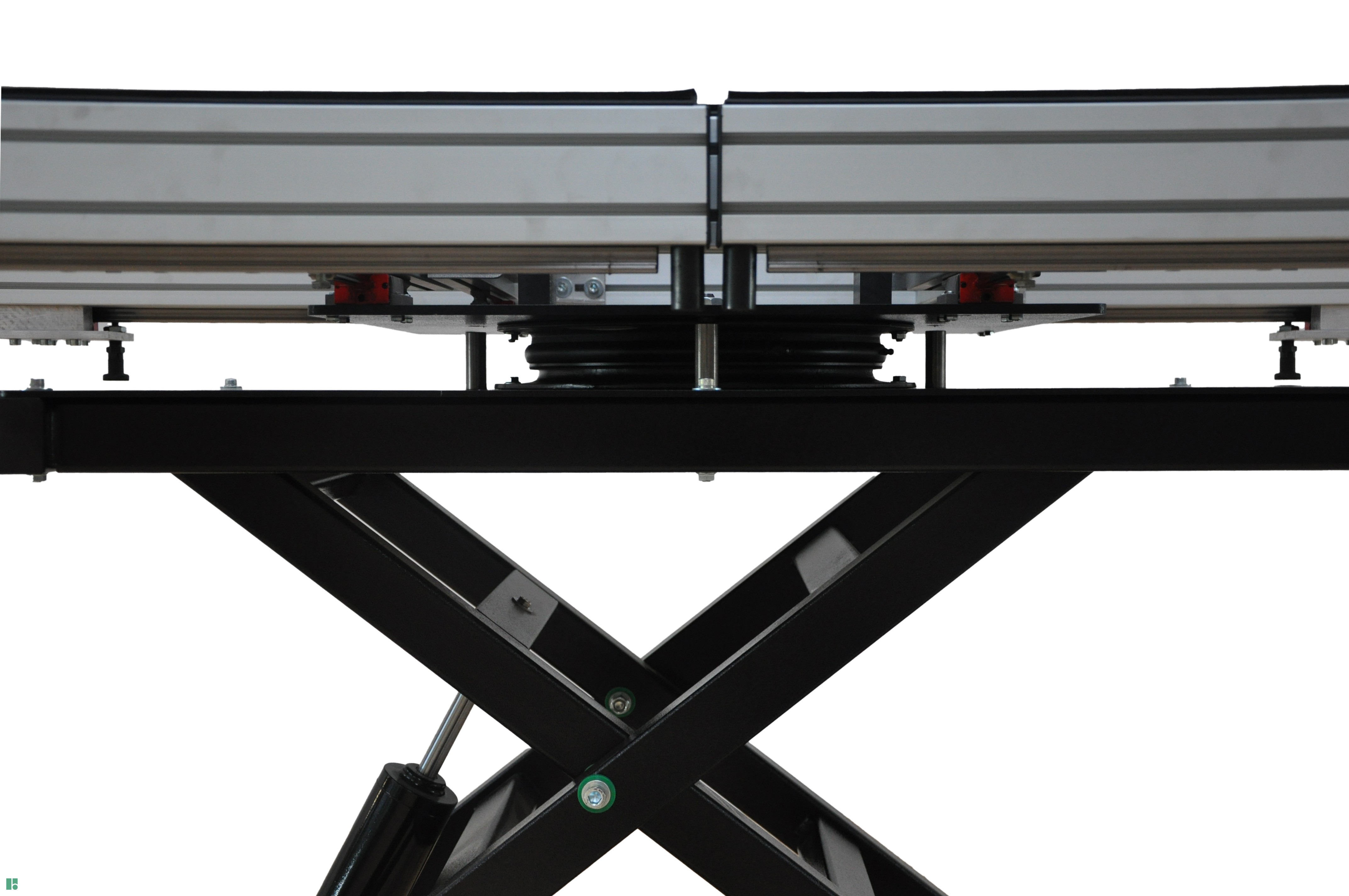

Variable height 600 - 1200 mm

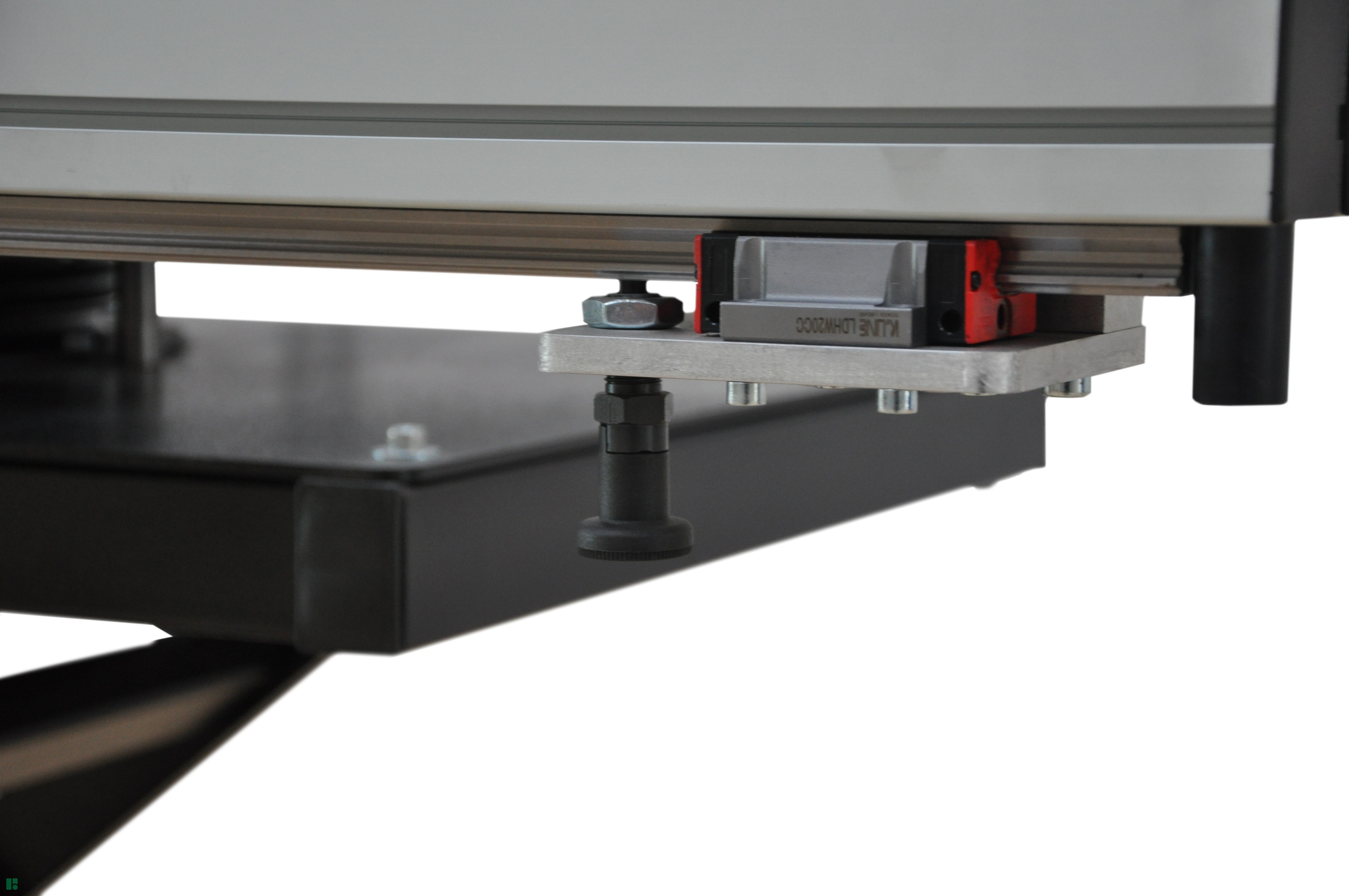

Sliding of bars on recirculating ball guides
professional mechanical fifth wheel with locking on cardinal points (revolver)
